POLYCAST DG0644H Class B Spacing 5/8" Fiberglass BAR 6" x 24" Grate

POLYCAST DG0644H Class B Spacing 5/8" Fiberglass BAR 6" x 24" Grate

  • DG0644-Polycast-fiberglass-bar-grate-TDSdrains
1 1

Drainage Kits

DG0644H

Fiberglass grate for SS600 and Polycast 600 Drain System. Large project? Request a Quote
$108.75 USD
$0.00 USD $108.75 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Fiberglass - Bar
  • Manufacturer: Polycast
  • System: Polycast 500, Polycast 600
  • Grate Load Class: B
  • Grate Pattern: Bar
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl-Ester
  • Frame/Edging: No Frame, No Edging, Galvanized, Stainless
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential, Sport Complex - Recreational

Description

Fiberglass grate for SS600 and Polycast 600 Drain System.
Large project? Request a Quote

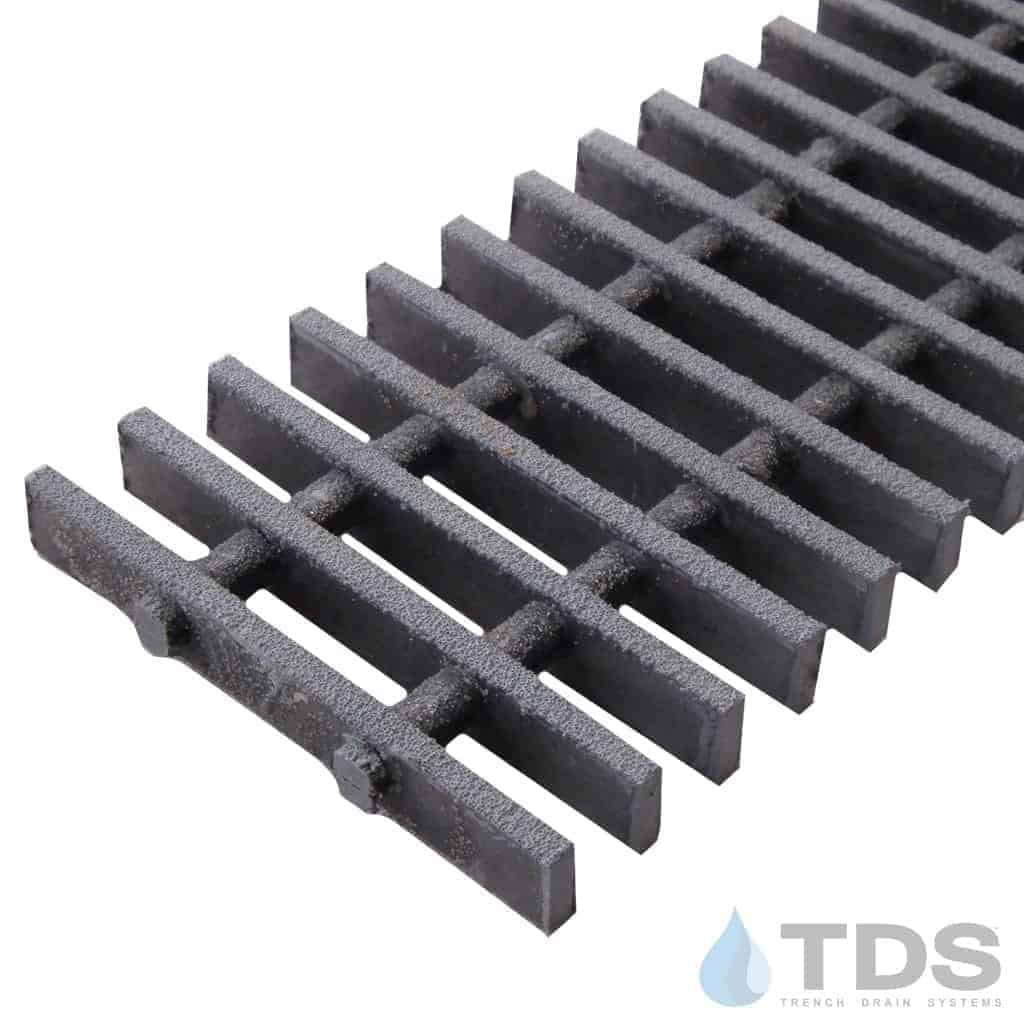

DG0644H - Fiberglass grates designed to fit the TDS SS600 Series drain and the POLYCAST® 500, 600 and 700 Series channel drain system and others. Normally used in areas where extreme chemical resistance is needed but with no heavy loads.  Separation between bars is 0.63".  Gritted top non-slip surface.

MATERIAL: Fiberglass reinforced Isophthalic Polyester Resin (FRP)

POLYCAST® 600 locking device (4 per grate) for DG0644

POLYCAST® 700 locking device (4 per grate) for DG0644

Specification Sheet
