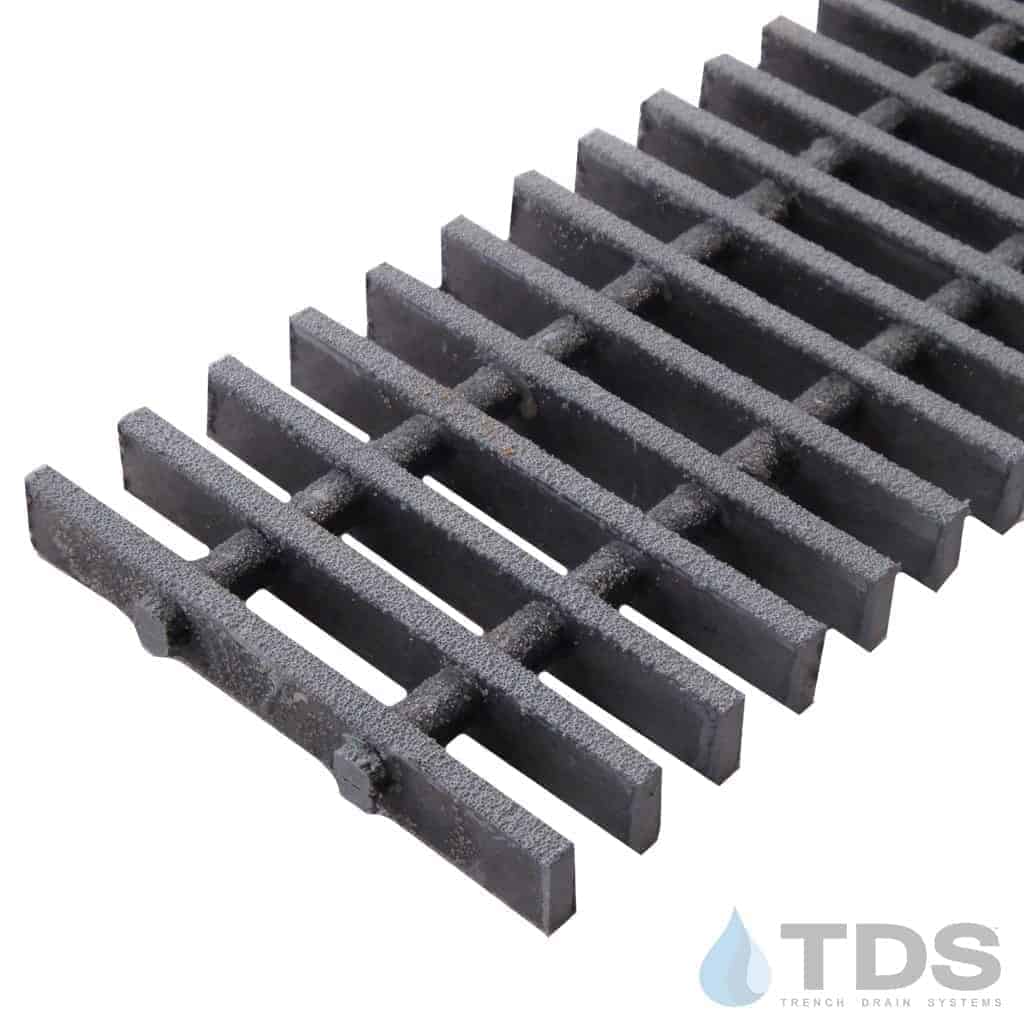

POLYCAST FG0644 Class B Spacing 5/8" Fiberglass BAR 6" x 48" Grate

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500 and POLYCAST 600

Grate Load Class: Class B

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Polymer Concrete - Vinyl Ester

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Fiberglass grate for SS600 and Polycast 600 Drain System.

FG0644 - Fiberglass grates designed to fit the TDS SS600 Series drain and the POLYCAST® 500, 600 and 700 Series channel drain system and others. Normally used in areas where extreme chemical resistance is needed but with no heavy loads. Separation between bars is 0.63". Gritted top non-slip surface.

MATERIAL: Fiberglass reinforced Isophthalic Polyester Resin (FRP)

Locking devices not included. Select a system below for the related locking device:

POLYCAST® 600 locking device (4 per grate) for FG0644

POLYCAST® 700 locking device (4 per grate) for FG0644

Specification Sheet for FG0644
