POLYCAST® 700 Series Kit w/DG0644SP Fiberglass Slotted Grate & HDPE Frame

POLYCAST® 700 Series Kit w/DG0644SP Fiberglass Slotted Grate & HDPE Frame

Skip to product information
1 of 4

Drainage Kits

SKU:PCK7-DG0644SP-PF-60

Each Kit Includes:

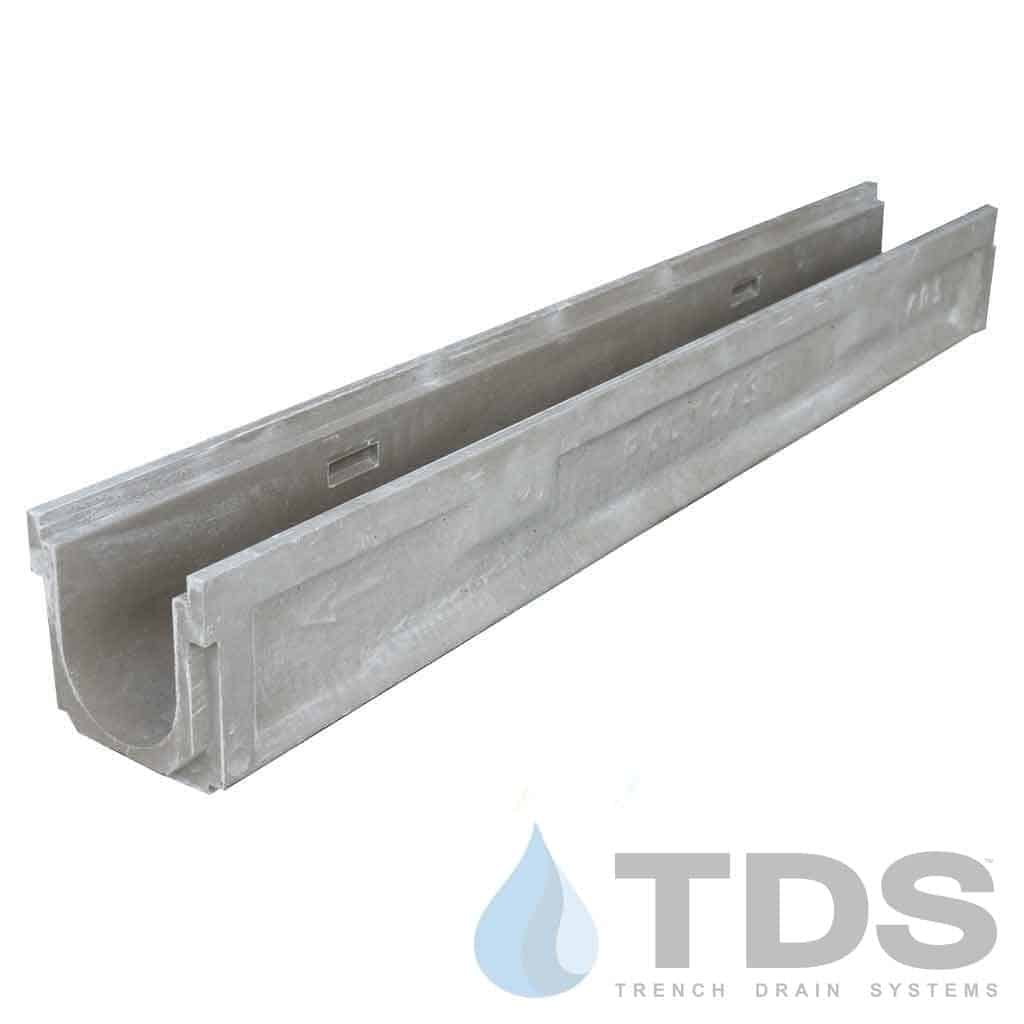

  • 48" POLYCAST®  pre-sloped channel (1 for each 4' of kit ordered) Non-sloped runs available by requesting all neutral channels
  • Grates

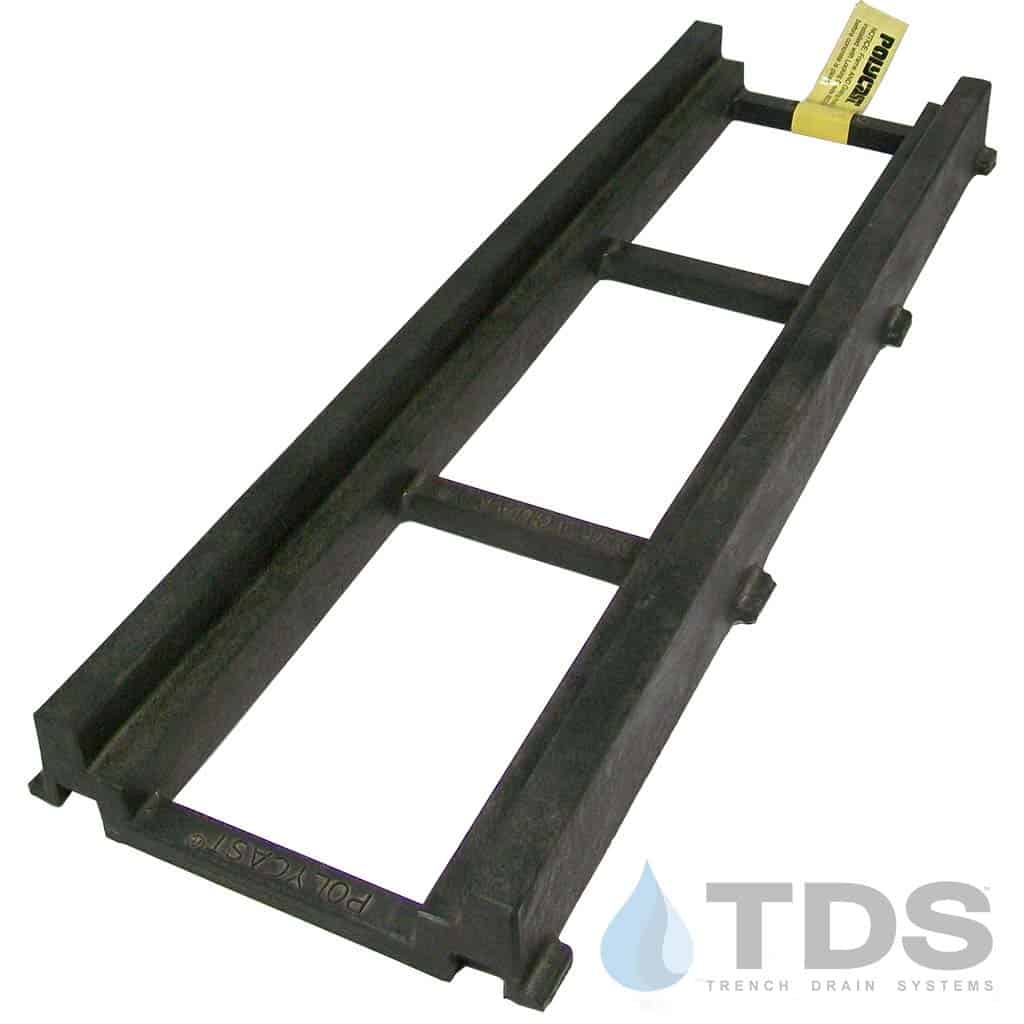

  • HDPE Frames (Raises system to a Load Class D)
  • Grate Hold-down devices
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap
Large project? Request a Quote
Regular price $8,937.47 USD
Regular price $0.00 USD Sale price $8,937.47 USD
Sale Sold out
Kit Length
Channel Type
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Fiberglass - Bar
  • Manufacturer: Polycast
  • System: Polycast 700
  • Grate Load Class: D
  • Grate Pattern: Bar
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: HDPE
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Transportation

Description

Each Kit Includes:

  • 48″ POLYCAST®  pre-sloped channel (1 for each 4′ of kit ordered)
    Non-sloped runs available by requesting all neutral channels
  • Grates
  • HDPE Frames (Raises system to a Load Class D)
  • Grate Hold-down devices
  • Installation Chairs
  • End Outlet (fits 4″ S&D pipe)
  • End Cap

Large project? Request a Quote

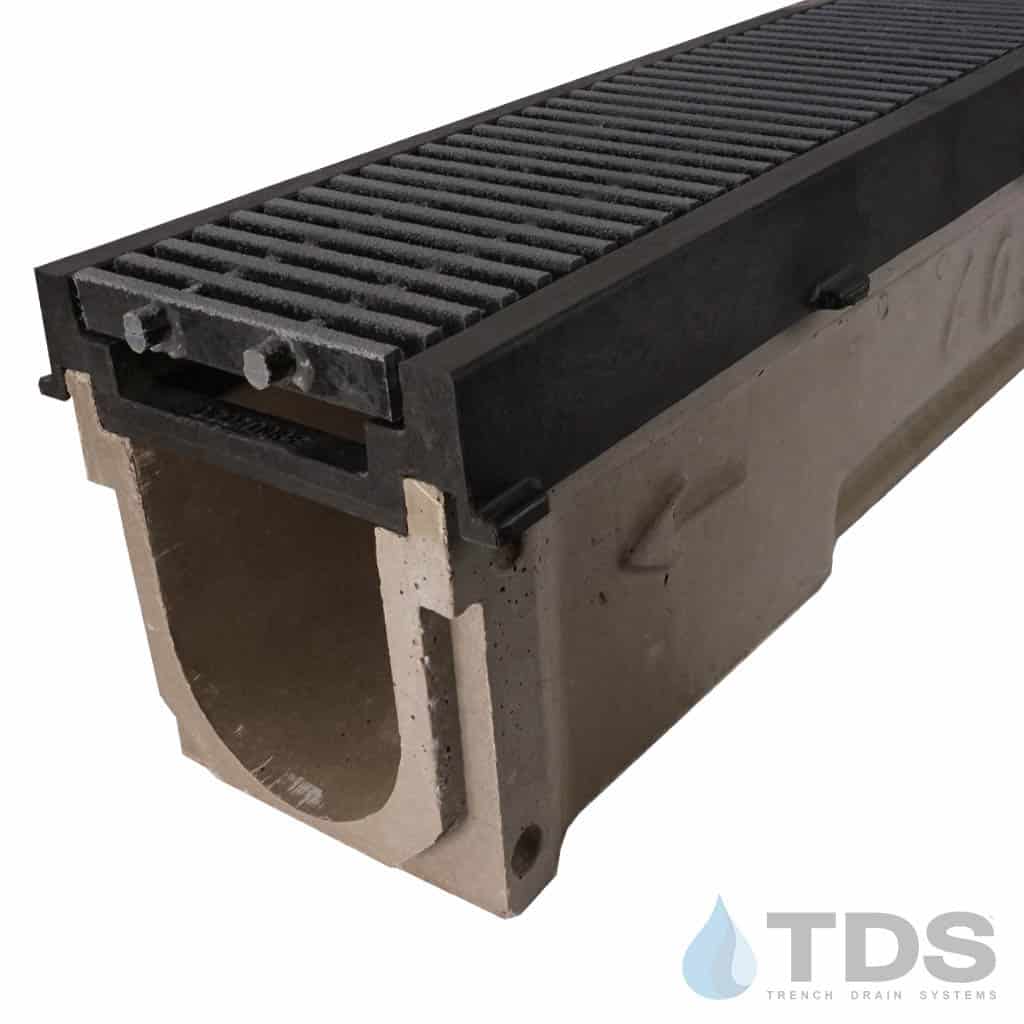

This POLYCAST® 700 Series is a polymer concrete channel that has a built-in 0.65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run.  Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Grating:

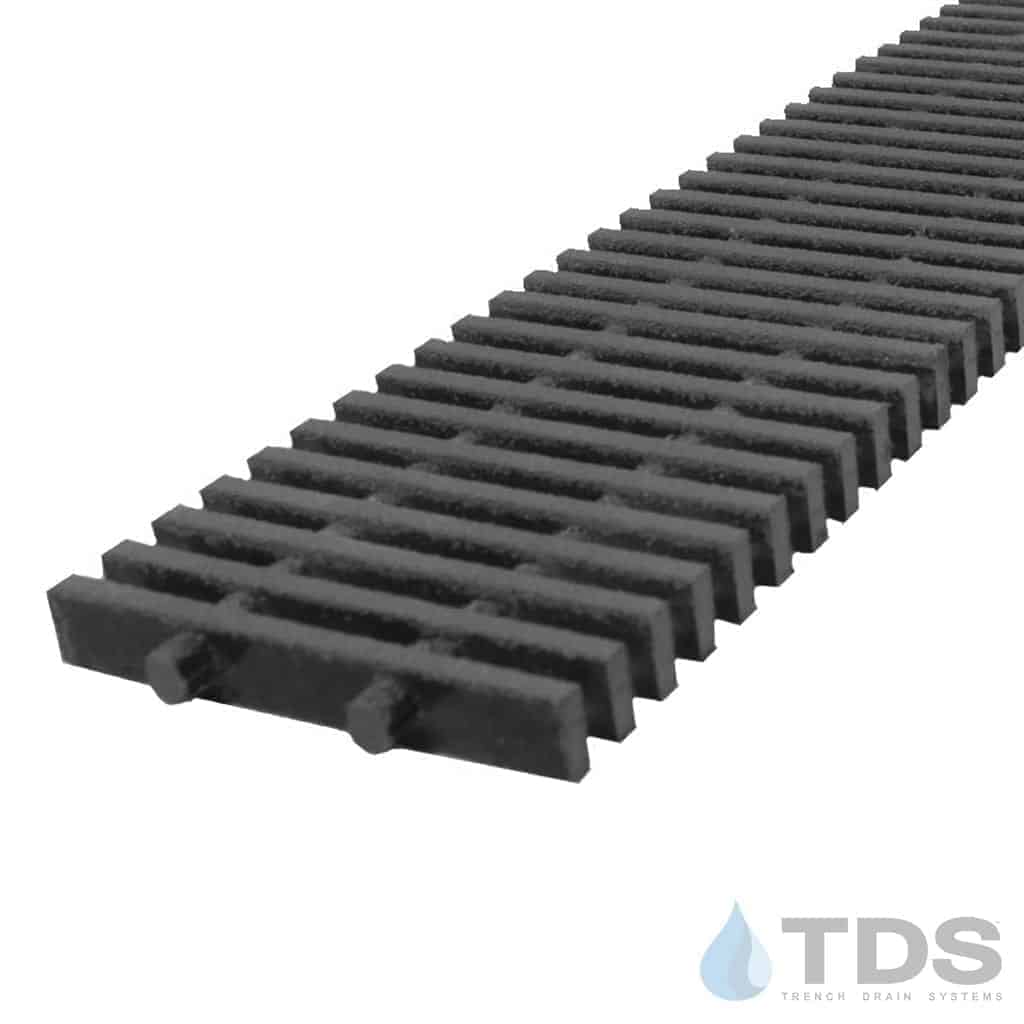

  • DG0644SP - Fiberglass slotted grate - (Class C Load Rating)
  • Open Surface Area: 39% (96IN2)
  • Color: Gray

DG0644SP Grate Specification Sheet

DG0700PE Frame Specification Sheet

Each Kit Includes:

  • 48" POLYCAST®  pre-sloped channel (1 for each 4' of kit ordered)
    Non-sloped runs available by requesting all neutral channels
  • Grates
  • HDPE Frames (Raises system to a Load Class D)
  • Grate Hold-down devices
  • Installation Chairs
  • End Outlet (fits 4" S&D pipe)
  • End Cap

Installation instructions

Layout Info:

Before we can ship your pre-sloped drain order, a layout will need to be approved by you. We will contact you via email with a layout drawing showing channel depths to be shipped. Once layout approval is received, the order is shipped.

If you choose all neutral channels (no slope), please note this in the ‘Order Notes’ during checkout. A layout is not necessary with neutral channels. TDS reserves the right to choose the channel depths based on availability. If you require specific channel depths, please note this in the ‘Order Notes’ during checkout, and we will do our best to accommodate the request.
