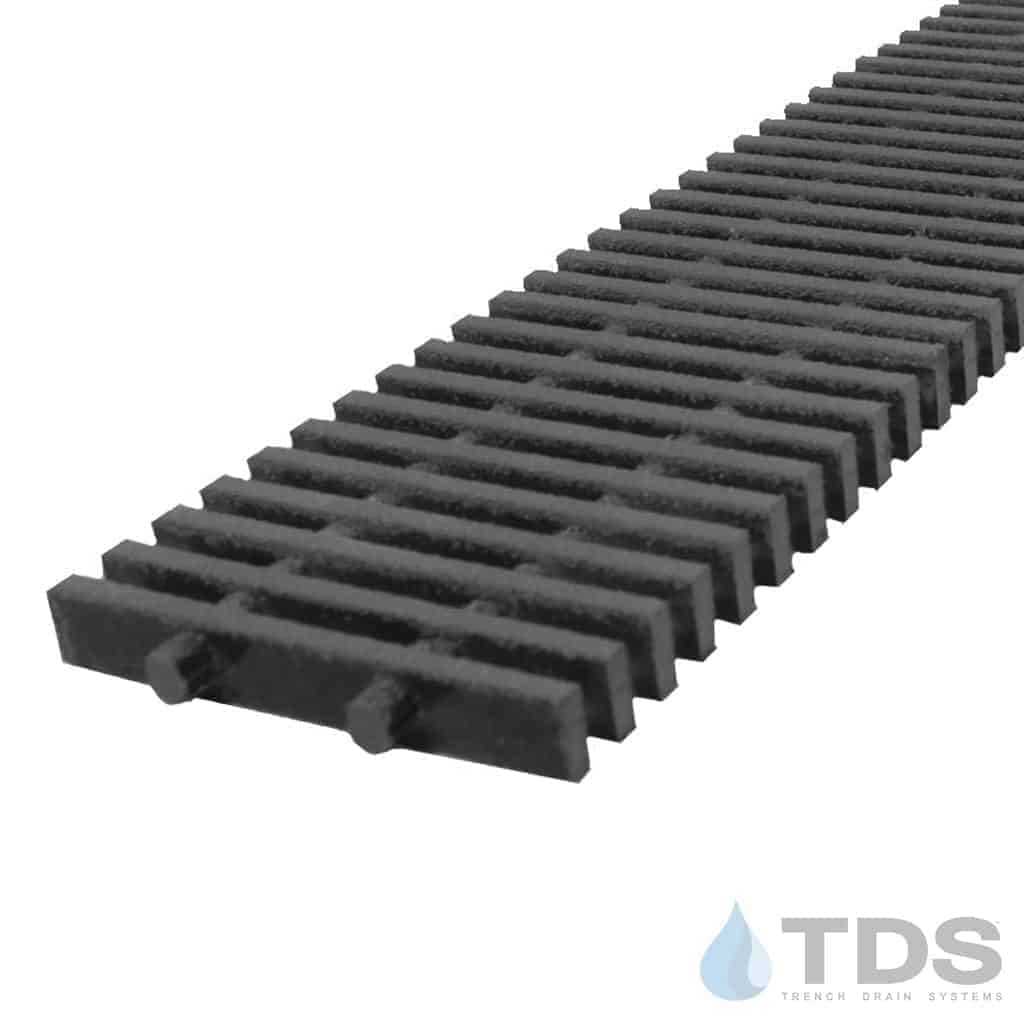

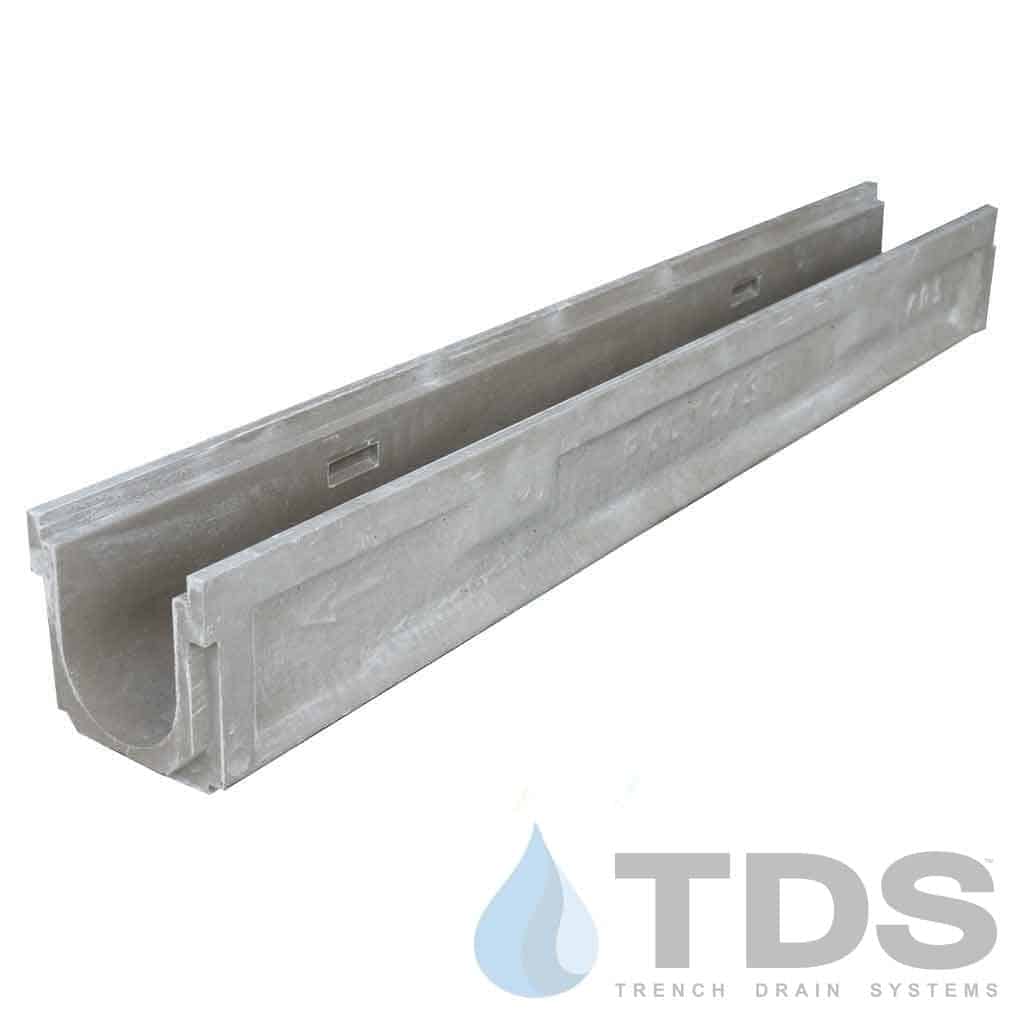

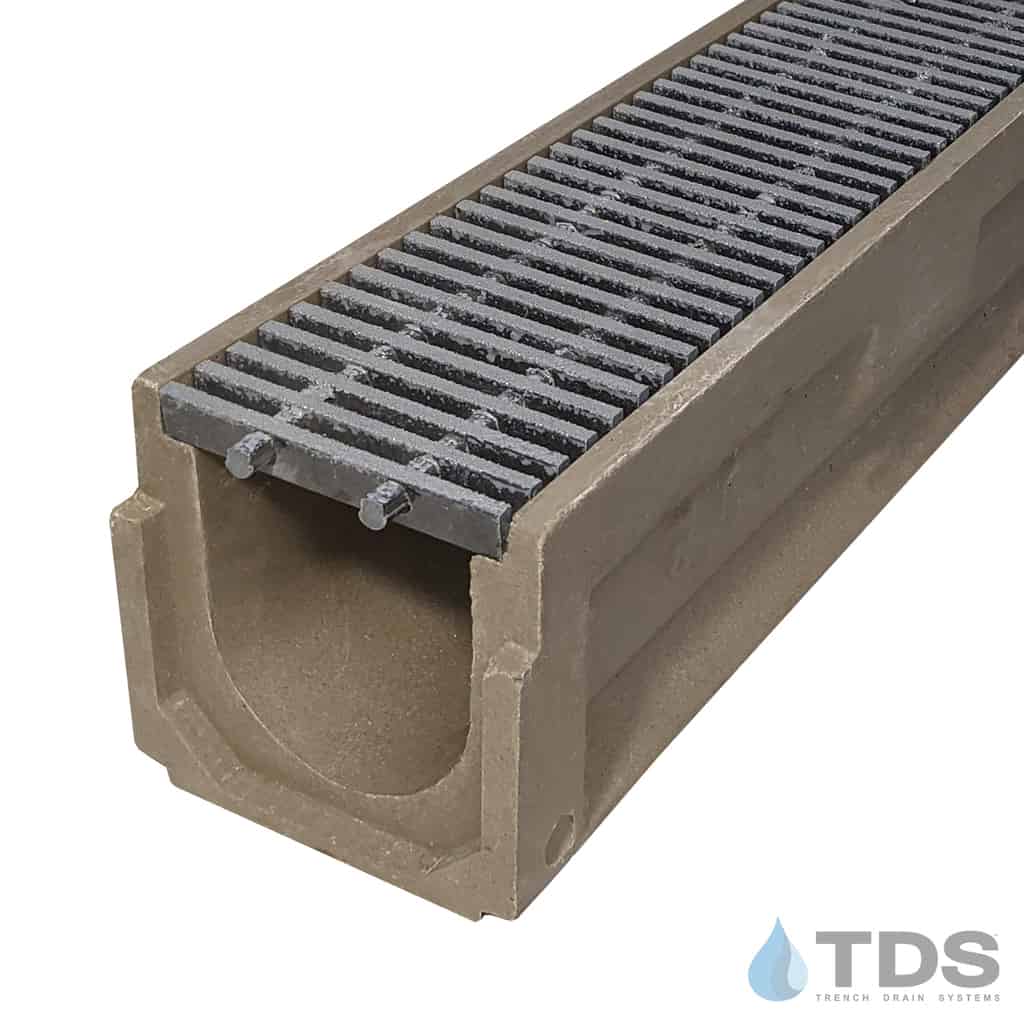

POLYCAST 600 Series is a polymer concrete channel that has a built-in 0.65% slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour. The grates are made of fiberglass and are normally used in areas where extreme chemical resistance is needed but with no heavy loads. The separation between bars is 0.38". Gritted top non-slip surface.
Channel Depths/Dimensions
Corrosion Resistance Details
Engineering Specifications
Installation Instructions
Layout Info:
Please review the inlet/outlet depths shown above for each system length. (Add 3/4" to include the channel bottom thickness) Non sloped channels are available upon request.
If you have certain channels, a channel depth requirement, require vinyl ester channels, or have a large project, we invite you to request a quote.
NOTE: For proper installation, grates must be in the channel during installation.
2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
