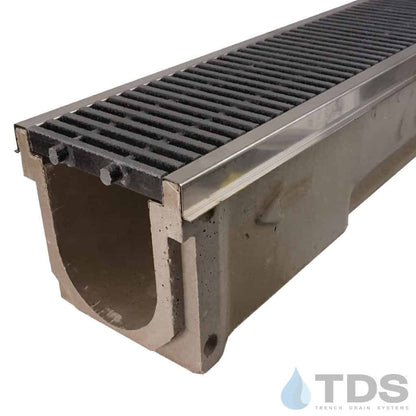

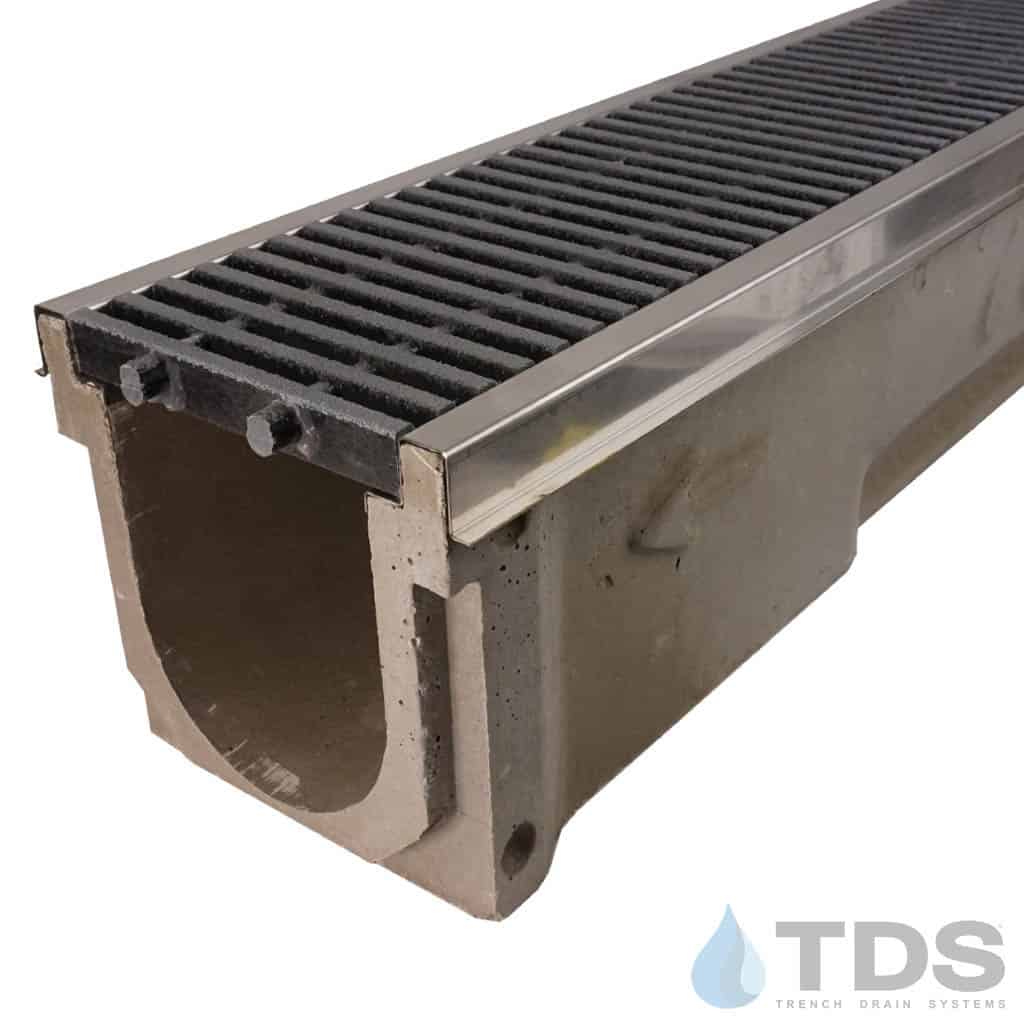

POLYCAST 600 Series Kit w/DG0644SP Fiberglass Grate & Stainless Edge- Load Class C

POLYCAST 600 Series Kit w/DG0644SP Fiberglass Grate & Stainless Edge- Load Class C

Skip to product information
1 of 4

Drainage Kits

SKU:PCK6-DG0644SP-SE-EXT2

Each Kit Includes: 48″ POLYCAST 600 channel(s) Non-sloped runs available by requesting all neutral channels 48″ FRP Bar Grates Grate Hold-down devices 2/grate Installation Chairs End Cap End Outlet
Regular price $477.64 USD
Regular price $0.00 USD Sale price $477.64 USD
Sale Sold out
Kit Length
Channel Type
View full details

Additional Information

  • Grate Width: 5.25"
  • Grate Thickness: 0.75"
  • Product Type: Channel Kit, Kit
  • Grate Material / Color / Finish: Fiberglass - Bar
  • Manufacturer: Polycast
  • System: Polycast 600
  • Grate Load Class: C
  • Grate Pattern: Bar
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester
  • Frame/Edging: Stainless
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

Each Kit Includes:
48″ POLYCAST 600 channel(s)
Non-sloped runs available by requesting all neutral channels
48″ FRP Bar Grates
Grate Hold-down devices 2/grate
Installation Chairs
End Cap
End Outlet

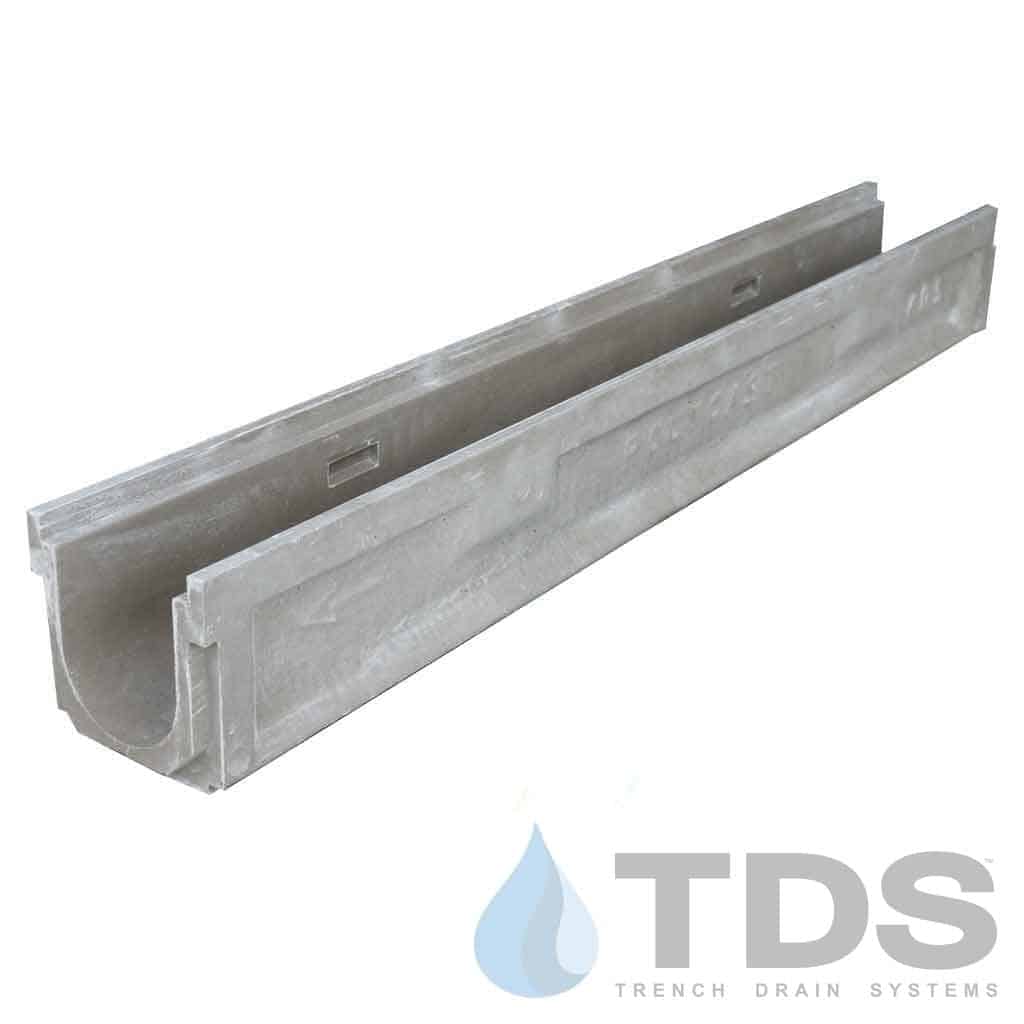

POLYCAST 600 Series is a polymer concrete channel that has a built-in 0.65% slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour. The grates are made of fiberglass and are normally used in areas where extreme chemical resistance is needed but with no heavy loads. The separation between bars is 0.38". Gritted top non-slip surface. Made in USA.

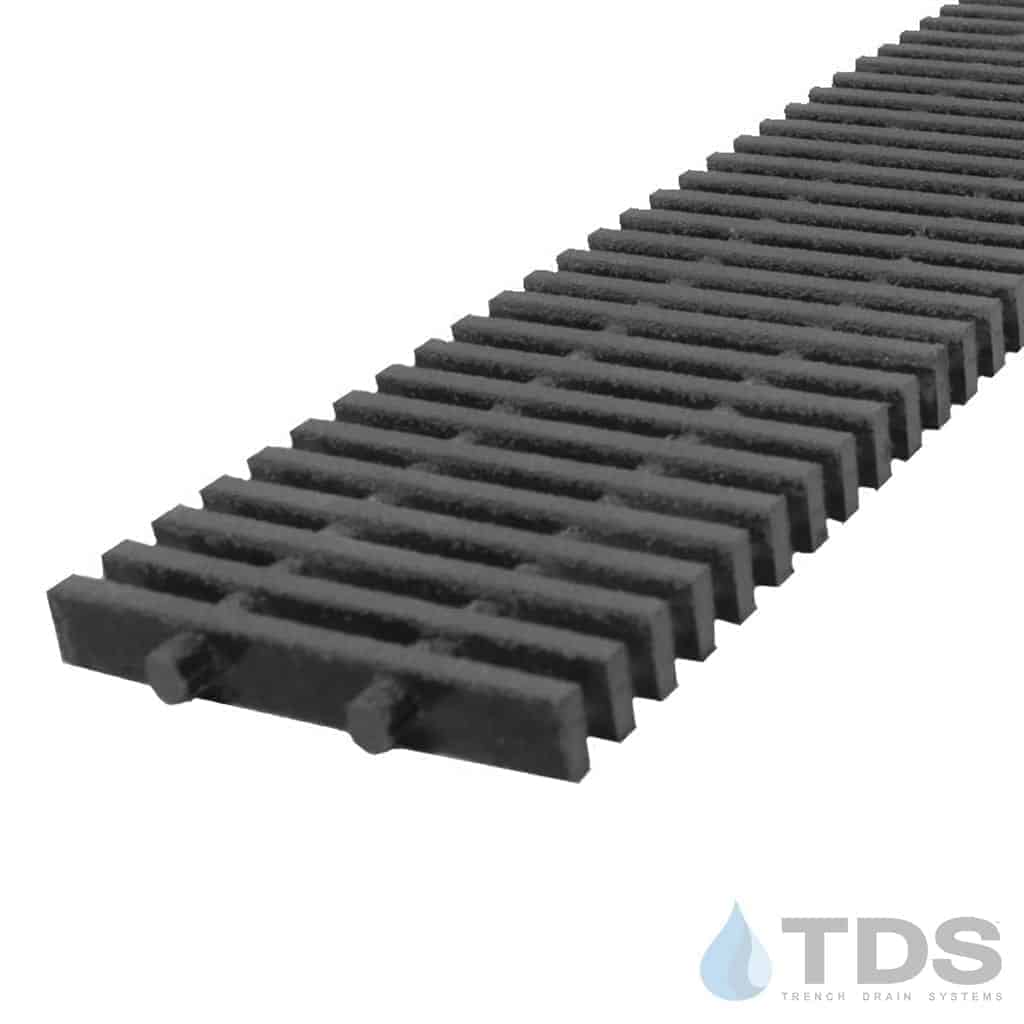

Grating:

  • FRP Bar Fiberglass Grate - (Class C Load Rating)
  • Pattern: slotted bar
  • 0.38" between bars
  • Gritted non-slip surface
  • Chemical resistance
  • DG0644SP Grate Specification Sheet

Each Kit Includes:

  • 48" POLYCAST 600 channel (1 for each 4' of kit ordered)
    Non-sloped runs available by requesting all neutral channels
  • 48" FRP Fiberglass Grate (1 per channel)

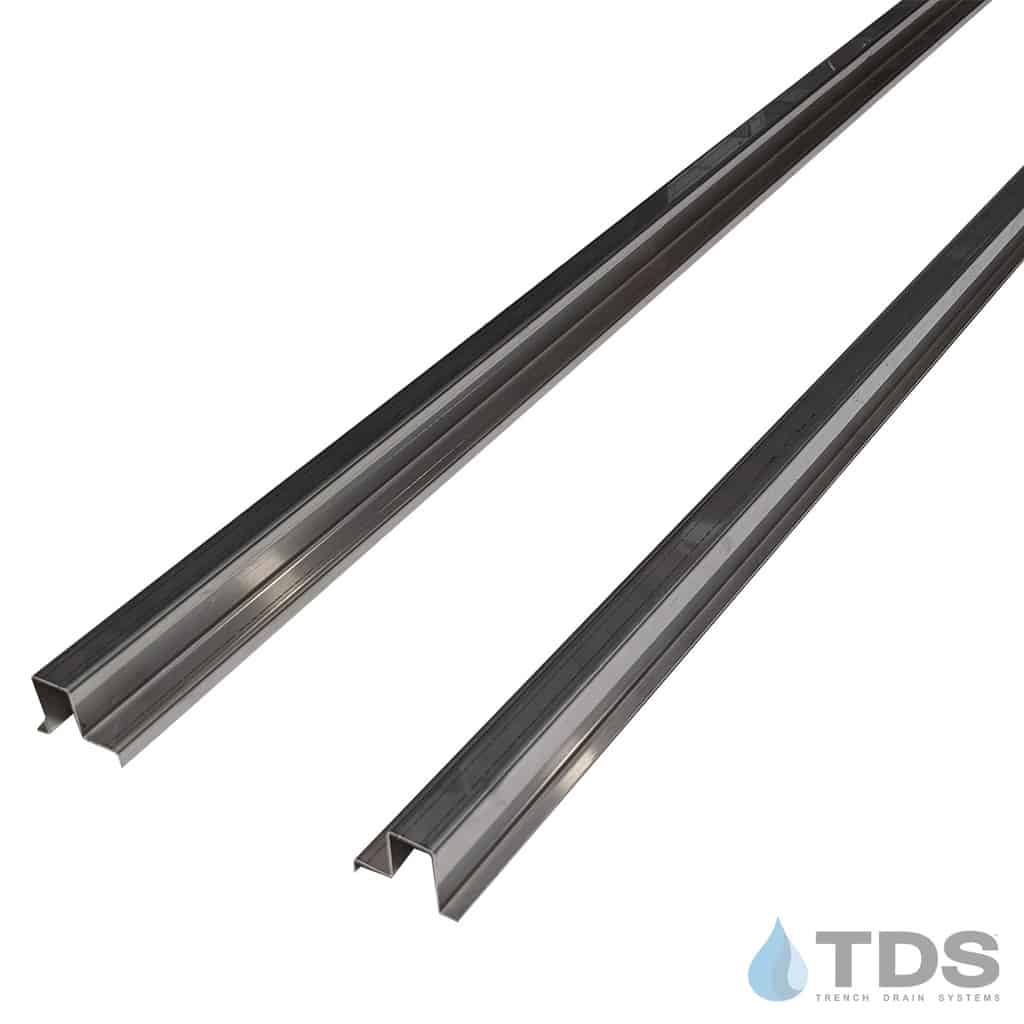

  • Stainless Edging
  • Grate Hold-down devices (2 per grate)
  • Installation Chairs
  • End Caps (1 per system)
  • End Outlet (1 per system)
  • Installation instructions

Want to learn more about this system? Click Here for more information.

POLYCAST 600 Layout

Layout Info:
Please review the inlet/outlet depths shown above for each system length. (Add 3/4" to include the channel bottom thickness)

If you have certain channels, a channel depth requirement, require vinyl ester channels, or have a large project, we invite you to request a quote.

NOTE: For proper installation, grates must be in the channel during installation.

2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.
