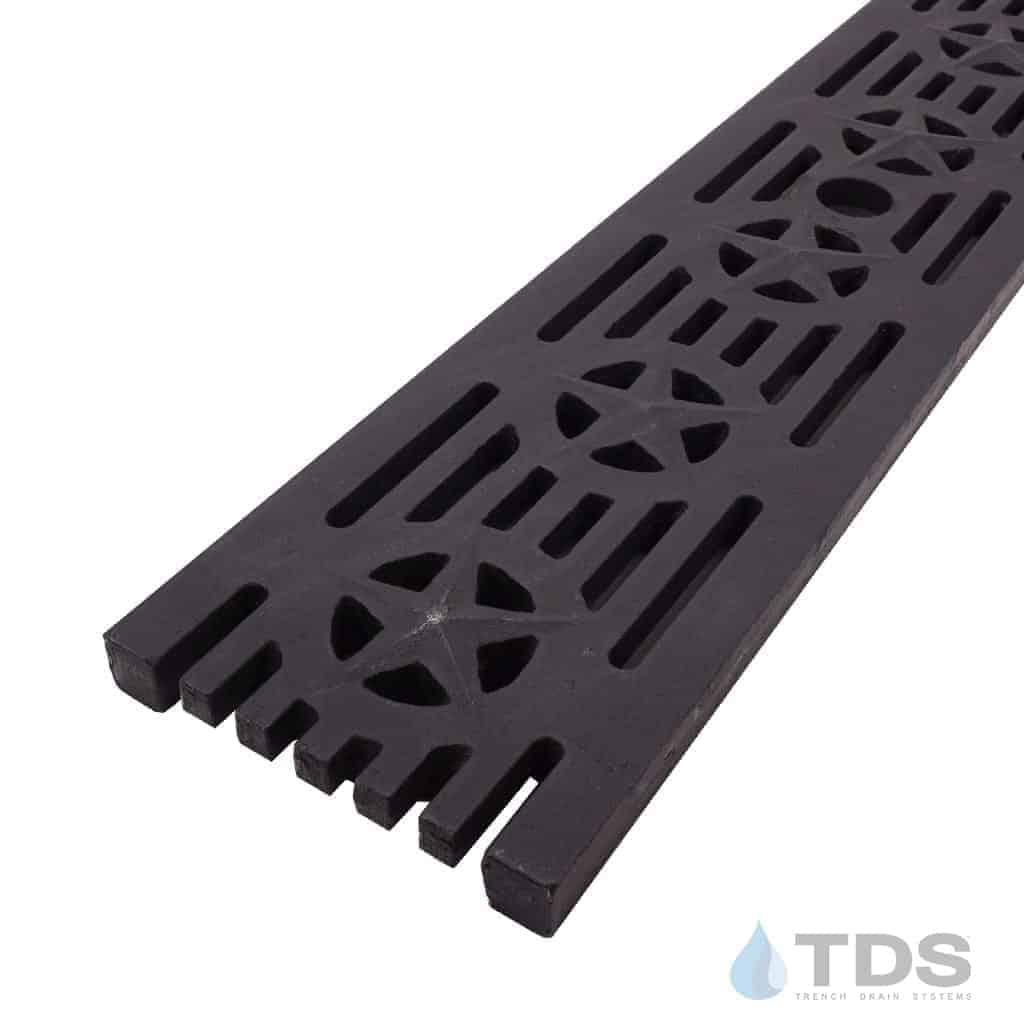

POLYCAST 500 Series Kit with DG0692 Patriot Ductile Iron Grate and HDPE Frame

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500

Grate Load Class: Class C

Grate Pattern: PATRIOT

Grate Pattern Style: PATRIOTIC

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - HDPE

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25" wide and comes in 48” lengths. A bottom outlet will need to be core drilled for pipe connection.  Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Typical Applications

• Multi Level Garages
• Parking Lots
• Elevated Slabs
• Hotels
• Swimming Pools
• Decks and Patios
• Grocery Stores

Grating:

• Ductile Iron Grate - (Class C Load Rating)
• Pattern: Patriot
• Open Surface Area: 21%

Each Kit Includes:

• 48" POLYCAST 500 channel (1 for each 4' of kit ordered)
• 24" HDPE Frames (2 per channel)
• 24" Decorative ductile Iron Grate (2 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (2 per system)
• Installation instructions
