POLYCAST 500 Series Kit w/ FG0644SP Vinyl-Ester Bar 3/8" Spacing Grate and Stainless Edge

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 500

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

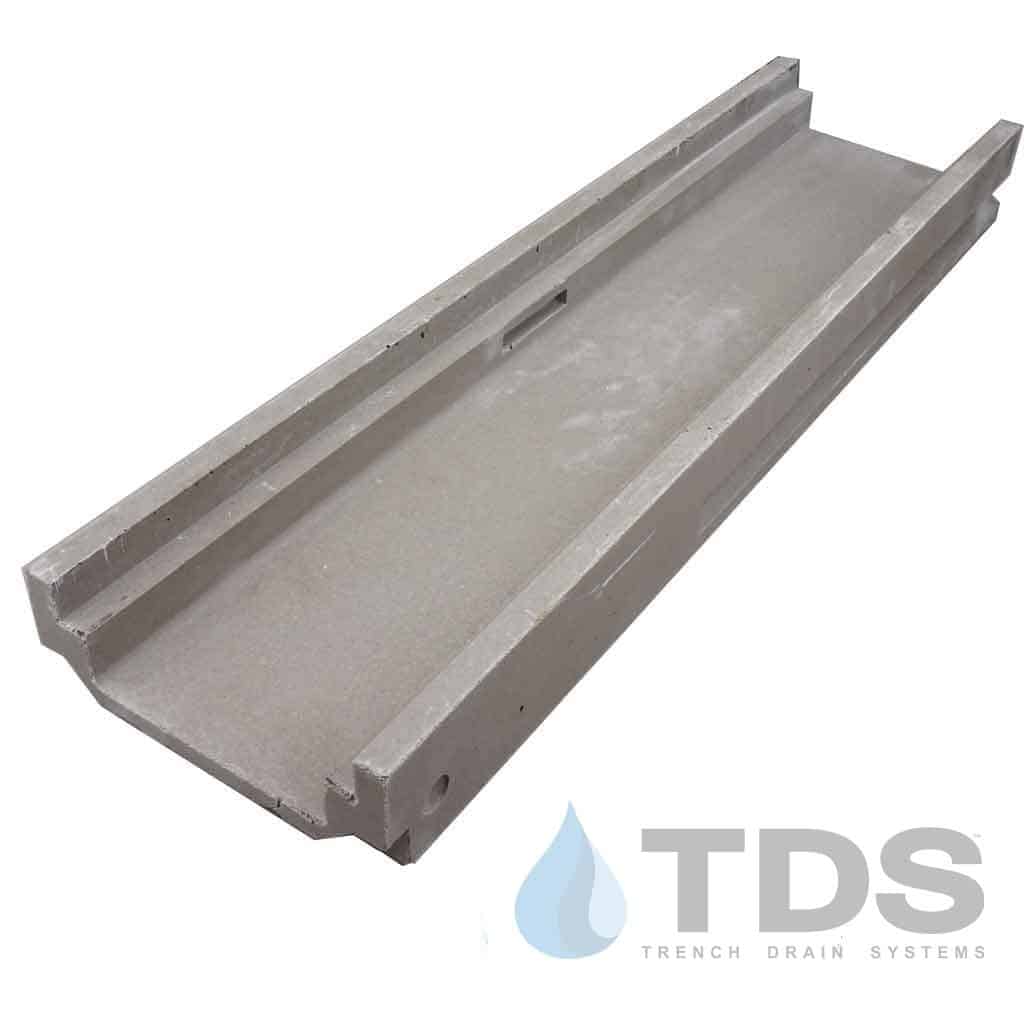

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25" wide, and comes in 48” lengths. A bottom outlet will need to be core drilled for pipe connection.  Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Typical Applications

• Decks and Patios
• Grocery Stores
• Multi-Level Garages
• Parking Lots
• Hotels
• Swimming Pools

Grating:

• Vinyl Ester Grate - (Class C Load Rating)
• Pattern: Bar with 3/8" spacing
• Open Surface Area: 39%

Each Kit Includes:

• 48" POLYCAST  500 channel (1 for each 4' of kit ordered)
• 48" Stainless Steel Edging (1pr per channel)
• 48" Vinyl-Ester Grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Cap (1 per system)
• End Outlet (1 per system)
• Installation instructions
