Each Kit Includes:

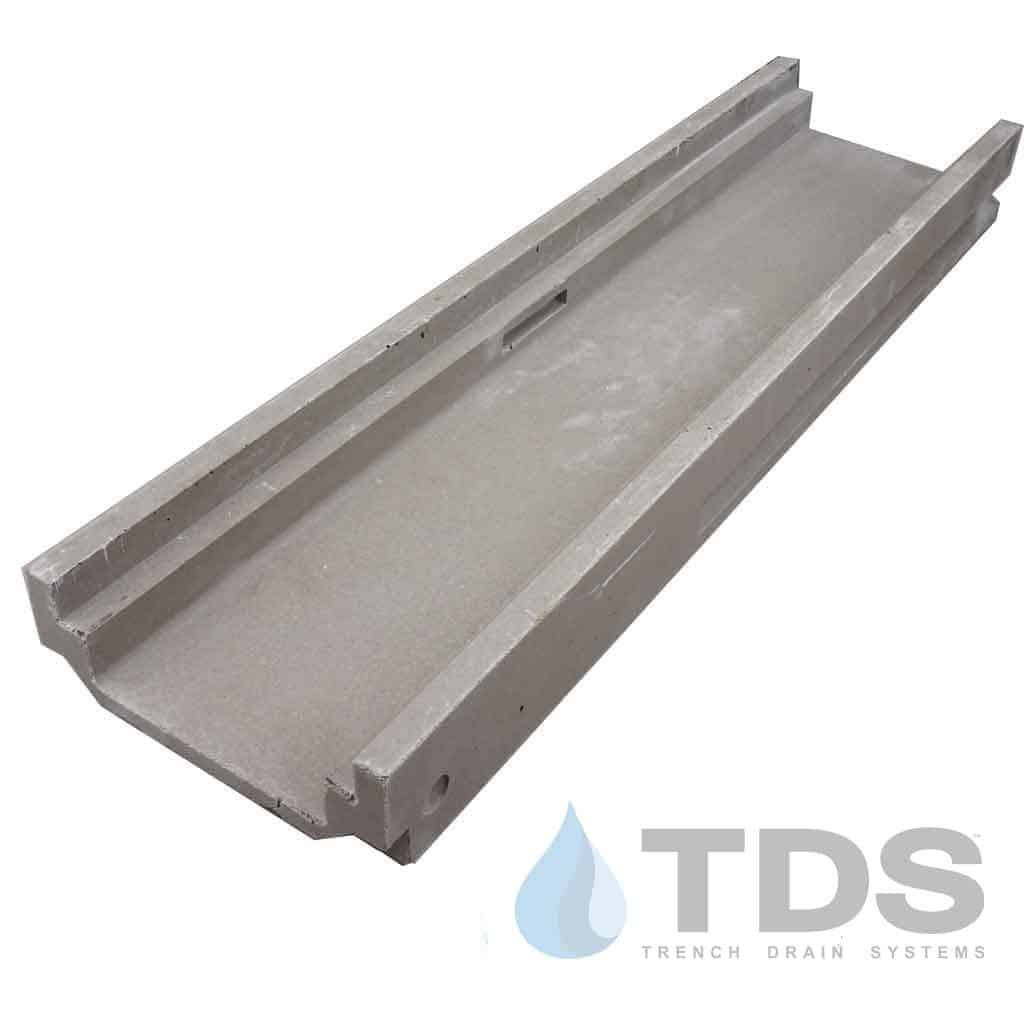

48″ POLYCAST channel(s)
48″ Vinyl Ester Grates

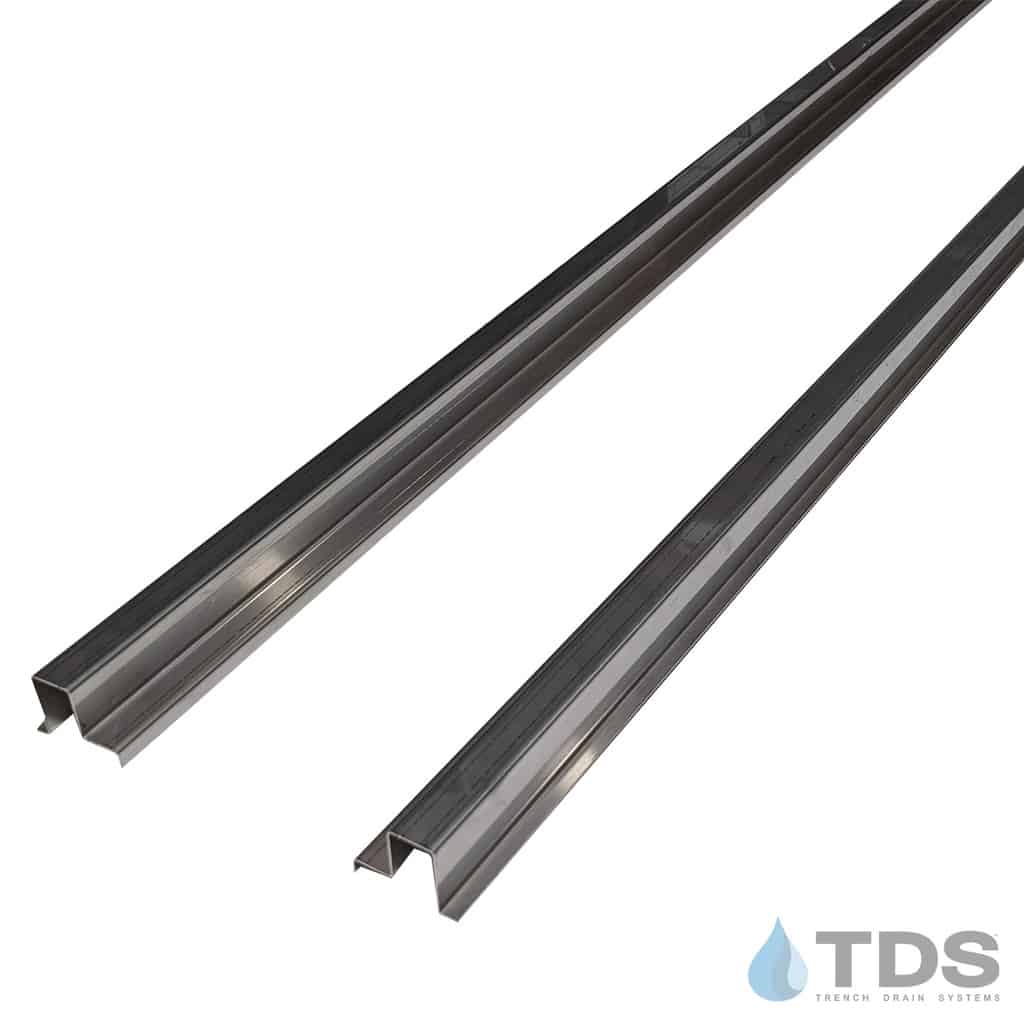

48″ Stainless Steel Edging 1pr/channel
Grate Hold-down devices 2/grate
Installation Chairs
End Cap
End Outlet

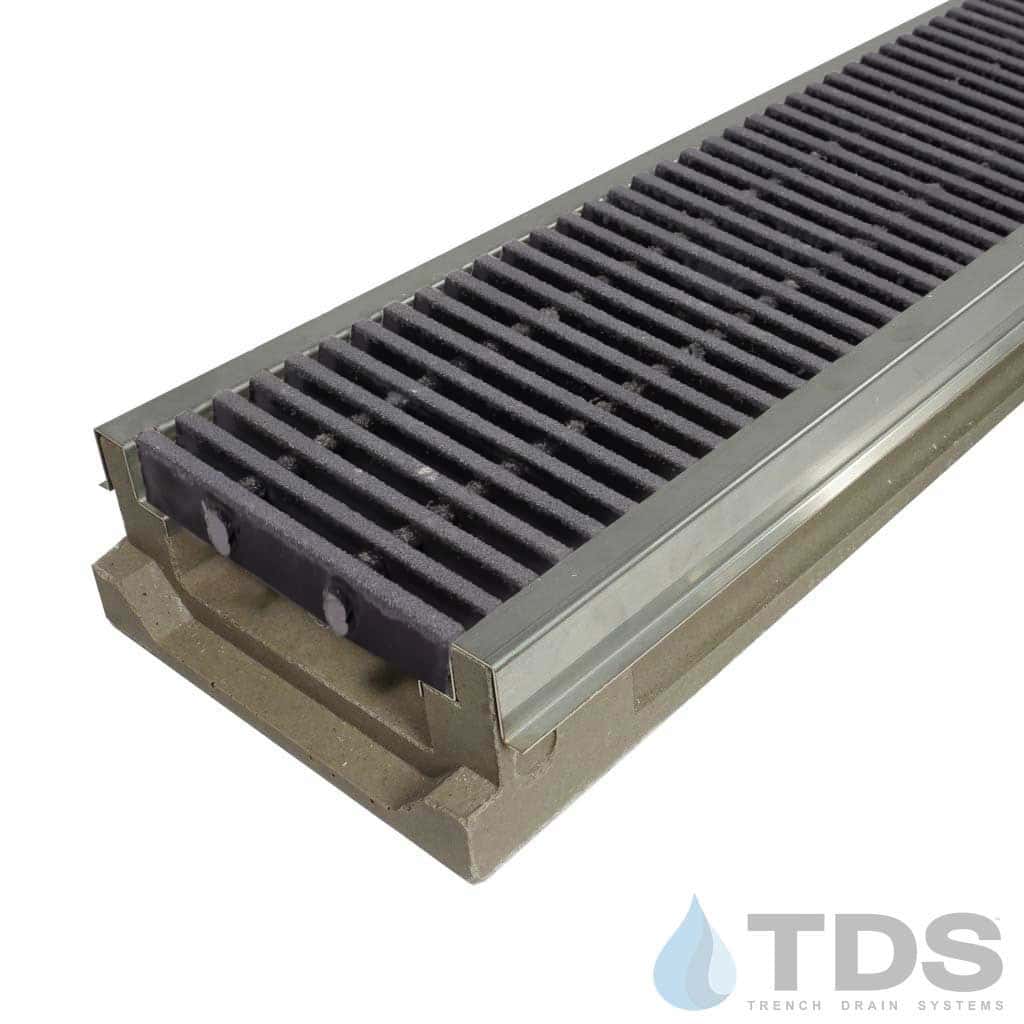

POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25" wide and comes in 48” lengths . A bottom outlet will need to be core drilled for pipe connection. Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.
Typical Applications
- Decks and Patios
- Grocery Stores
- Multi Level Garages
- Parking Lots
- Hotels
- Swimming Pools
Grating:
-

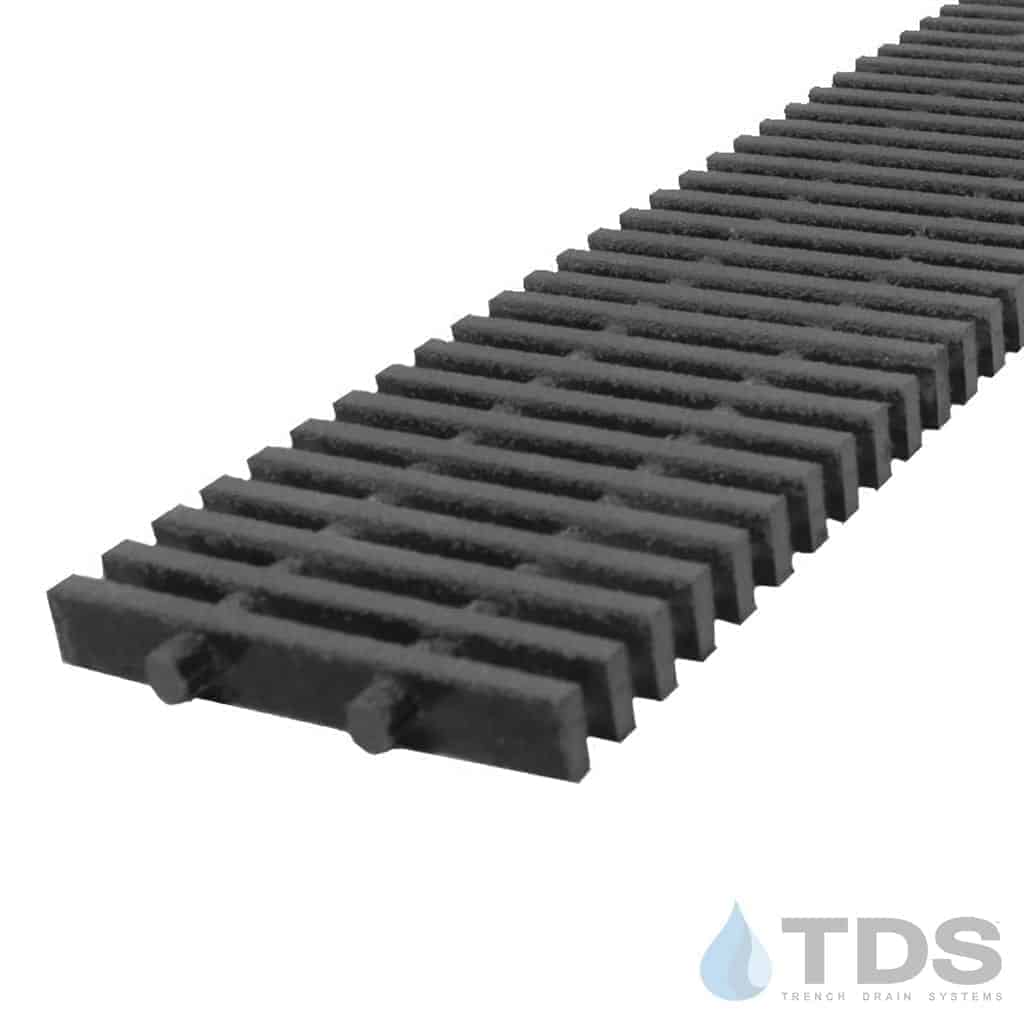

Vinyl Ester Grate - (Class C Load Rating)
- Pattern: Bar with 3/8" spacing
- Open Surface Area: 39%
Each Kit Includes:
- 48" POLYCAST 500 channel (1 for each 4' of kit ordered)
- 48" Stainless Steel Edging (1pr per channel)
- 48" Vinyl-Ester Grate (1 per channel)
- Grate Hold-down devices (2 per grate)
- Installation Chairs
- End Cap (1 per system)
- End Outlet (1 per system)
- Installation instructions
