POLYCAST 500 Kit w/ DG0622 Galvanized Foam Perforated Grate | Class A

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: Hubbell - POLYCAST and TDS (Trench Drain Systems)

System: POLYCAST 500

Grate Load Class: Class A

Grate Pattern: FOAM

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Each Kit Includes:

• 48″ POLYCAST 500 channel (1 for each 4′ of kit ordered)
• 48″ Galvanized Steel Grate (1 per channel)
• Grate Hold-down devices (2 per grate)
• Installation Chairs
• End Caps (2 per system)
• Installation instructions

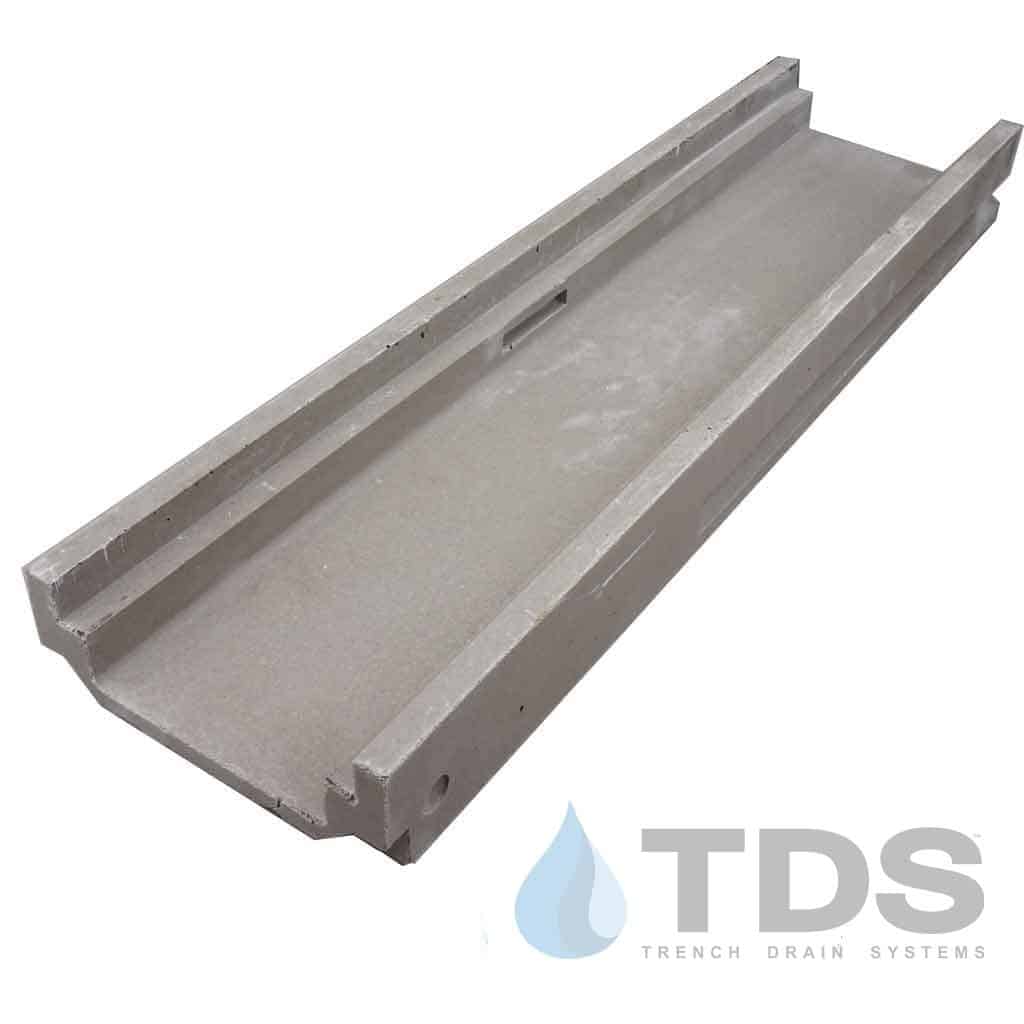

POLYCAST® 500 is a neutral shallow trench drain that is 1.75" in depth, 6.25" wide and comes in 48" lengths. A bottom outlet will need to be core drilled for pipe connection.

Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.

Typical Applications

• Elevated Slabs
• Hotels
• Decks and Patios
• Grocery Stores

Grating:

• Galvanized - (Class A Load Rating - Pedestrian Traffic)
• Pattern: Foam Pattern - Perforated
• Heel Proof
• ADA Compliant

Each Kit Includes:

• POLYCAST 500 channel (1 for each 4' of kit ordered)
• Grates
• Grate Hold-down device
• Installation Chairs
• End Caps (2 per system)
• Installation instructions
