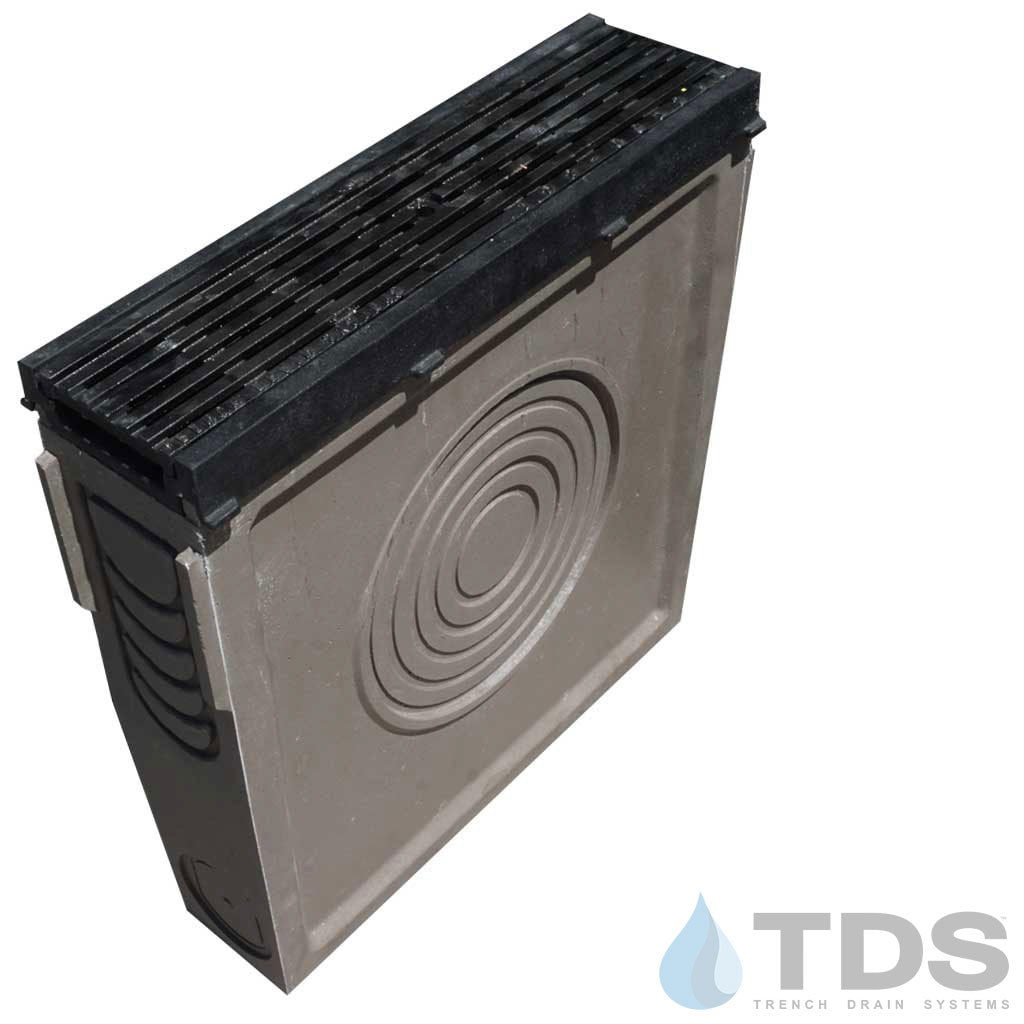

POLYCAST® DP0750 Inline Catch Basin w/DG0675HD Transverse Slotted Ductile Iron Grate & HDPE Frame

Grate Width: 5.25"

Grate Thickness: 0.75"

Grate Material / Color / Finish: Stainless Steel 304

Manufacturer: Hubbell - POLYCAST

System: POLYCAST 700

Grate Load Class: Class E

Grate Pattern: TRANSVERSE SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Frame - HDPE

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Transportation

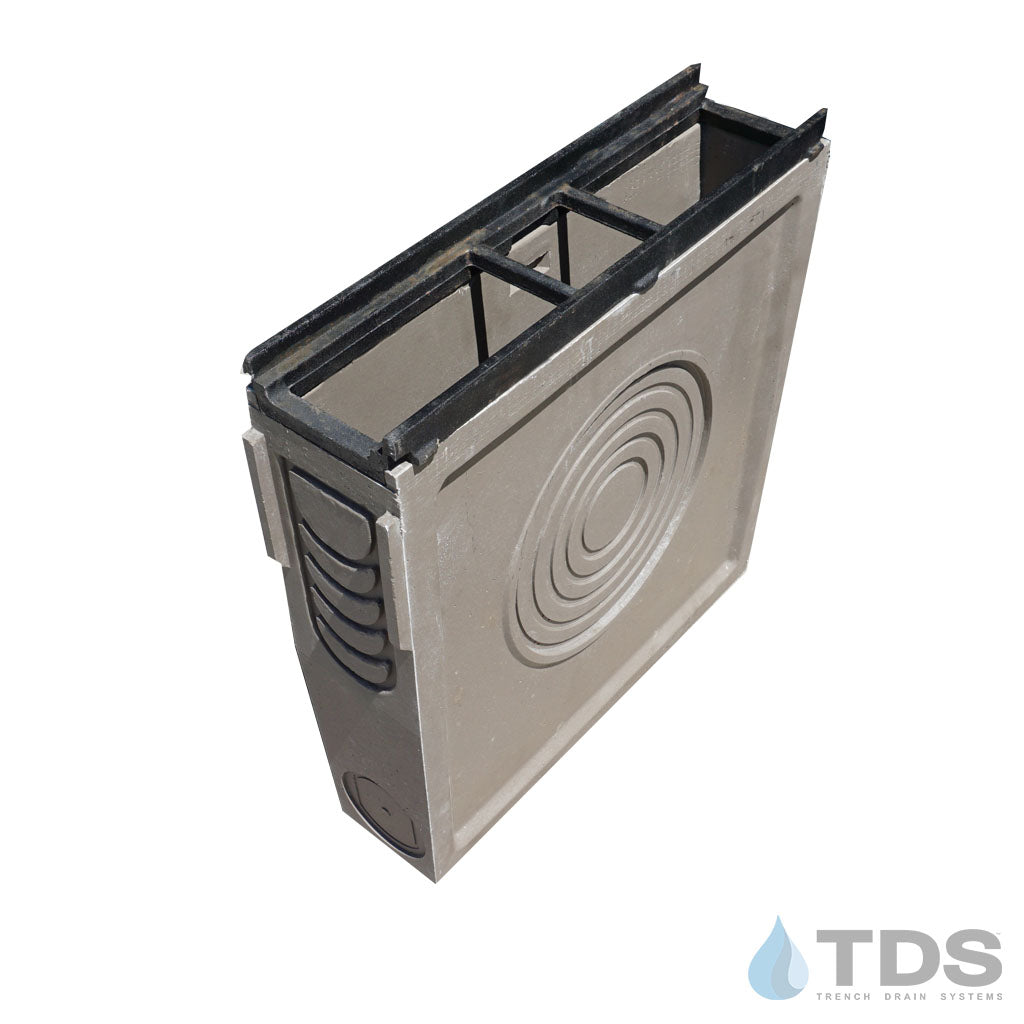

The POLYCAST® DP0750 Inline Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with a high-strength, corrosion-resistant polymer concrete material and is designed to be used as a collection point or drain run transition to collect solid debris. It can be used as an individual basin, or in tandem with a POLYCAST® 6" wide trench drain system. It can also be used beneath the TDS-POLYCAST® TP0650S short catch basin for a deeper installation with a larger capacity.

The catch basin accepts the same grate options, edging, and frames as the POLYCAST® 700 trench drains for an unnoticeable transition between the channels and the catch basin. Cut-outs for side, bottom, and end outlets are located on the catch basin for easy installation. A core drill is available before shipment (at an additional cost).

Actual Basin Dimensions: 6-1/4"W x 24"L x 24"H

The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625, and their corresponding halves and neutrals.

Specification Sheet for DG0675HD

Grating:

• DG0675HD –Transverse Slotted Ductile Iron  – (Class D Load Rating)
• Color: Black

Catch Basin Kit Includes:

• Grate (Transverse Slotted Ductile Iron Grate)
• Locking Device
• Catch Basin
• HDPE Frame (Raises system to a Load Class E)
