NDS 620 Pop-Up Emitter for 6" SDR pipe

NDS 620 Pop-Up Emitter for 6" SDR pipe

Skip to product information
1 of 3

Drainage Kits

SKU:NDS620

Regular price $42.01 USD
Regular price Sale price $42.01 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 6.00" Dia.
  • Product Type: Catch Basin Part, Part, Channel Part
  • Grate Material / Color / Finish: Plastic/HDPE
  • Manufacturer: NDS
  • System: Point Drain
  • Application: Decorative, Residential

Description

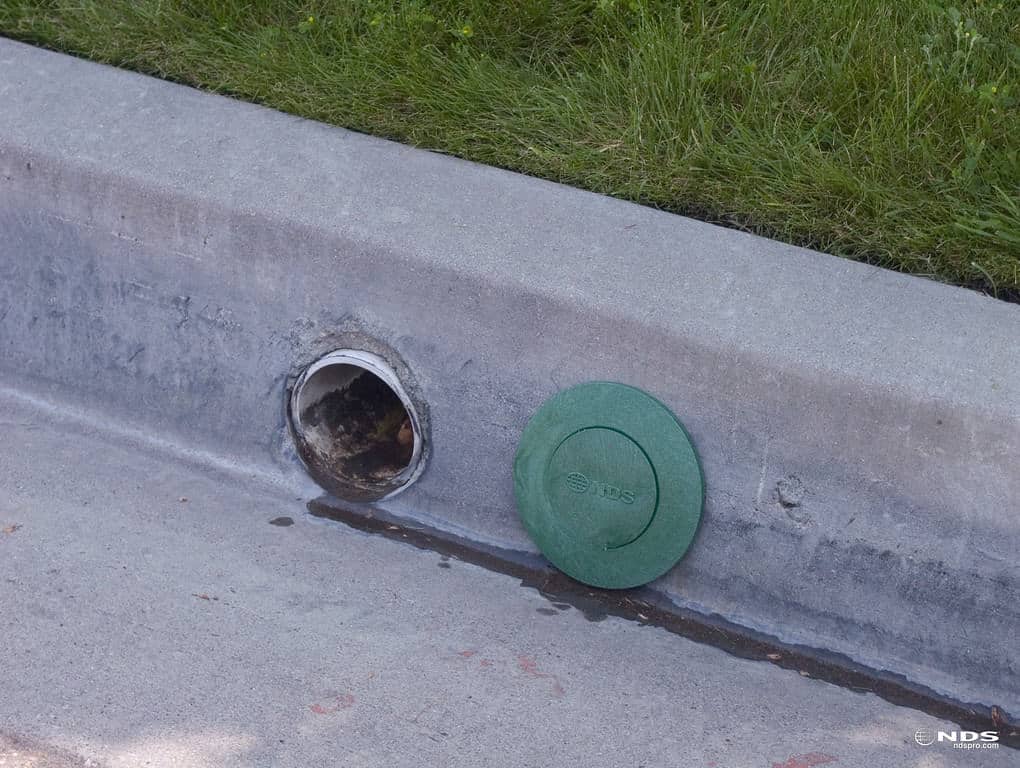

The 6" NDS 620 pop-up emitter helps to divert and release runoff to water-safe areas away from structures, easily eroded landscapes, and poor drainage areas. This product is wholesale grade and spring-loaded, ensuring closure after rainfall. Retail-grade versions of this product do not include this feature.

This special design permits captured water by catch basins, channel drains, Flo-Well, downspouts, or roof gutter systems to flow through a drainage pipe away from structural foundations. For example, water can be routed from a low area to a water-safe area such as a curbside drainage system.

The emitter opens with a negligible amount of hydrostatic pressure and then closes again once the pressure eases. Since the Emitter is closed during dry weather, debris and/or rodents cannot enter the drain pipes.





  • FeaturesNDS 620 Spec
  • Overall TOP width 7-15/16"
  • Polyolefin material
  • UV inhibitor
  • Spring automatically retracts
  • 88 G.P.M.
  • Fits 6" Sewer and Drain Fittings
  • Can be installed in vertical applications
  • Ideal for discharging water from retaining walls and street curbs
