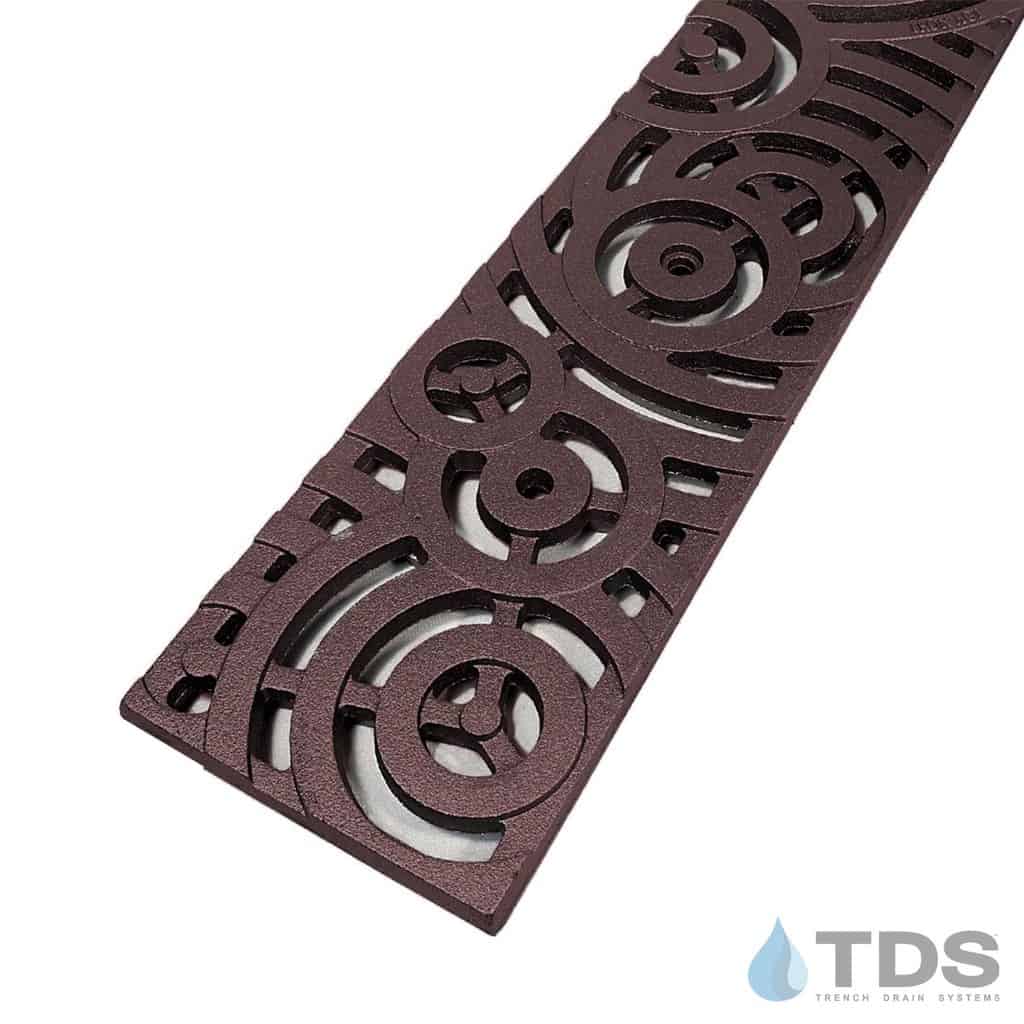

Iron Age IA-OBLIO-0520-BF Class B OBLIO Cast Iron 122mm x 500mm Grate - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age cast iron grates – Made in USA. Is compatible with ULMA, MEArin100 and other metric options.

Actual Dimensions: 4.81″ [122mm] x 19.63″ [498mm] x .81″ [20.57mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the Mearin 100 Channel drain system and others. The Oblio pattern is available in either the raw casting or Baked-on Oil Finish.

Actual Dimensions: 4.81" [122mm] x 19.63" [498mm] x .81" [20.57mm]

Specification Sheet for IA-OBLIO-0520-BF

Designed to fit:

• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• Smith K100S by J.R. Smith
• Polydrain by ABT

Locking devices sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
