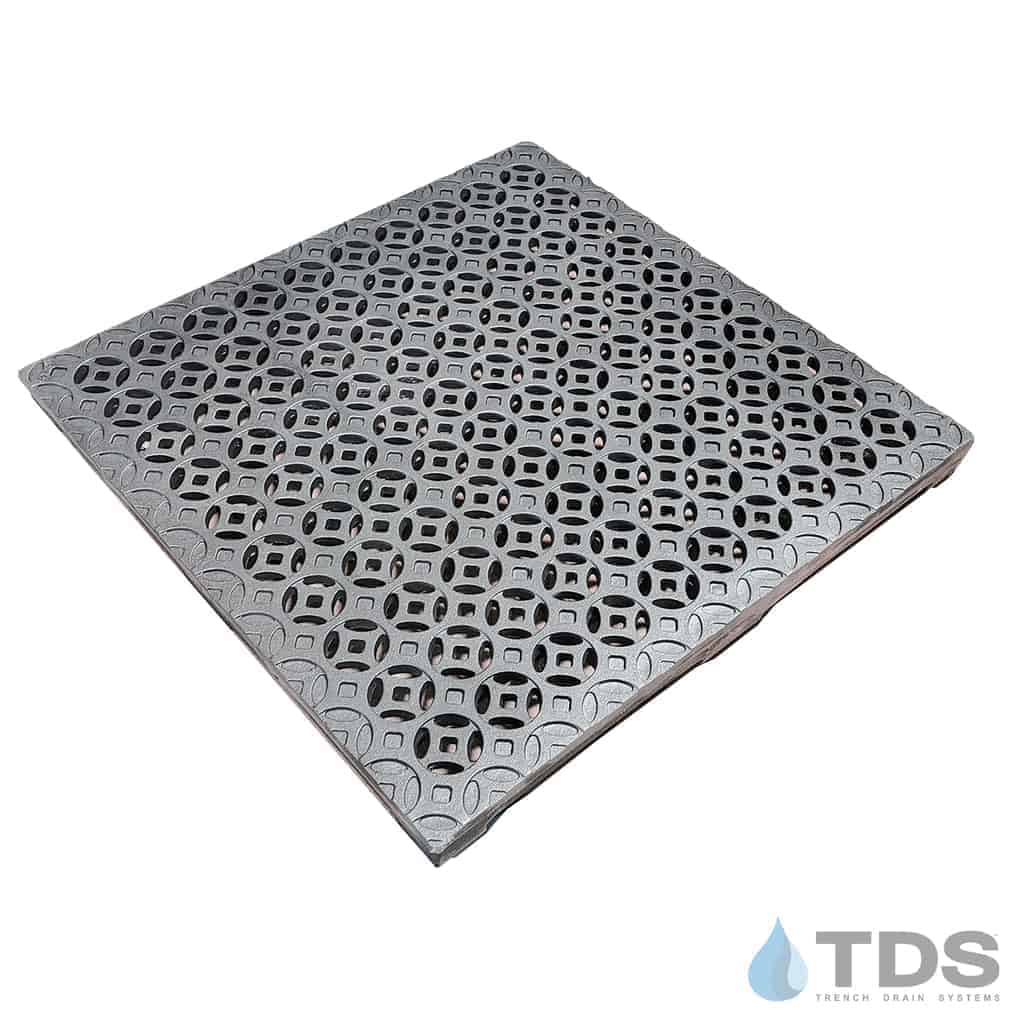

Iron Age IA-INTER-CB24 (IX24-24|99FW) Class B Interlaken Cast Iron 24" x 24" Grate - RAW

Grate Width: 24.0" x 24.0" for NDS 2400 Series

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: 2400 Series

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Food Processing, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Decorative Catch Basin Grate

Actual Dimensions: 23.88″ [607 mm] x 23.88″ [607 mm] x 1″ [25 mm]

Large project? Request a Quote

The decorative Interlaken pattern (cast iron) is slightly smaller (23.5" sq.) and does not fit the NDS2400 catch basins properly.

This Interlaken grate is 1" thick and is Load Class B.
The majority of Iron Age grates have not been rated for specific loads, but they have been designed at a minimum to withstand single-axle vehicles/residential traffic (Load Class B), regardless of material used. If your trench and catch basin grates need to be installed in an area with commercial traffic (Load Class C, D or E), we suggest casting in ductile iron, which has more flexibility and a higher strength-to-weight ratio.

Actual Dimensions: 23.88" [607 mm] x 23.88" [607 mm] x 1" [25 mm]

Specification Sheet for IA-INTER-CB24

Grate Gallons per Minute (GPM) Flow Rate: 15.43 GPM

Designed to fit: Custom Frame

What is Baked On Oil Finish (BoOF)? Click Here to learn more.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish? Click Here to learn more.
