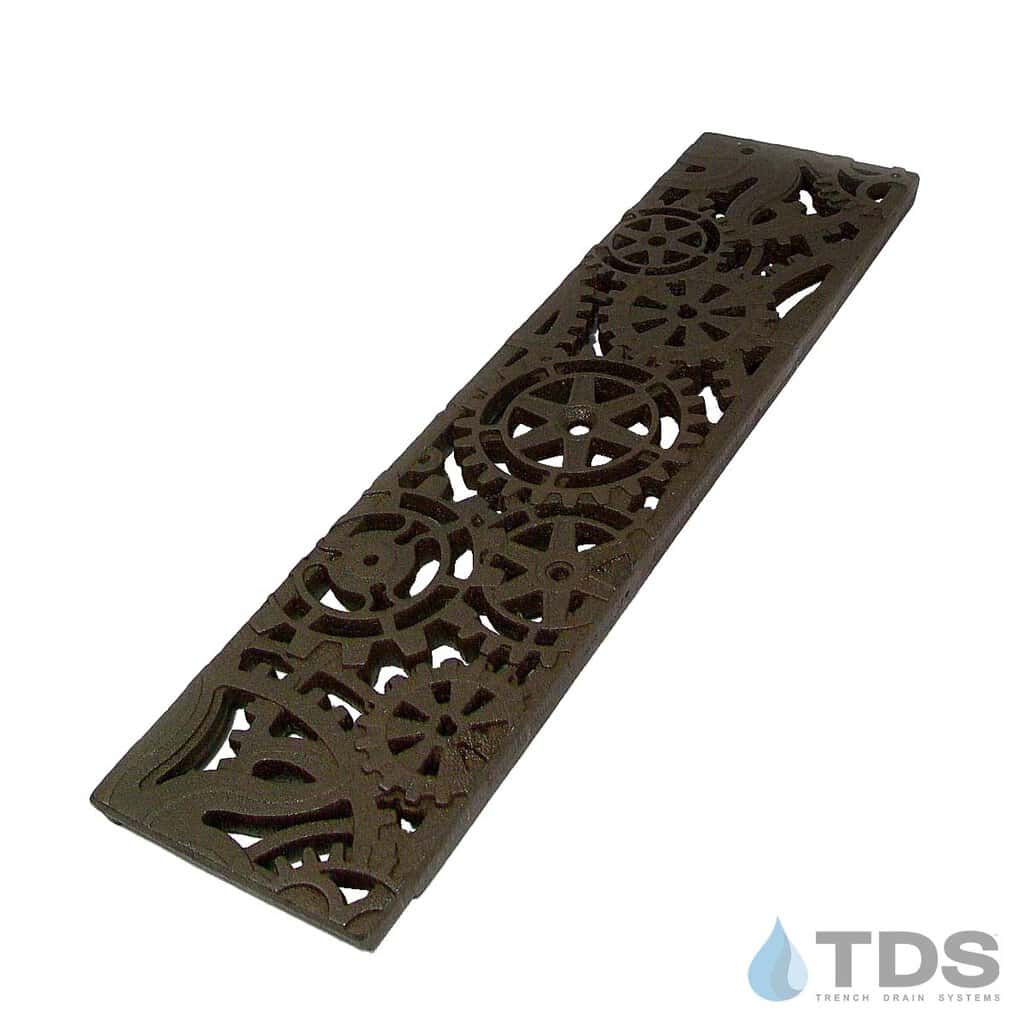

Iron Age IA-DYN-0520-BF Class B Dynamo Cast Iron 122mm x 500mm Grate - BoOF

Iron Age grate DYA5-20I21

Actual Dimensions: 4.81″ Wide [122mm] x 19.6″ Long [498mm] x .75″ Deep [19mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the MEArin 100, MEA J1000 Channel drain system and others.  Dynamo grate is available in either the raw casting or Baked on Oil Finish (BoOF). The Dynamo grate is ADA Compliant with no opening greater than 1/2″. Free drain area 26.2%.

Actual Dimensions: 4.81" Wide [122mm] x 19.6" Long [498mm] x .75" Deep [19mm]

Designed to fit:

• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• ABT - Polydrain
• Other metric drain systems

Locking device sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
