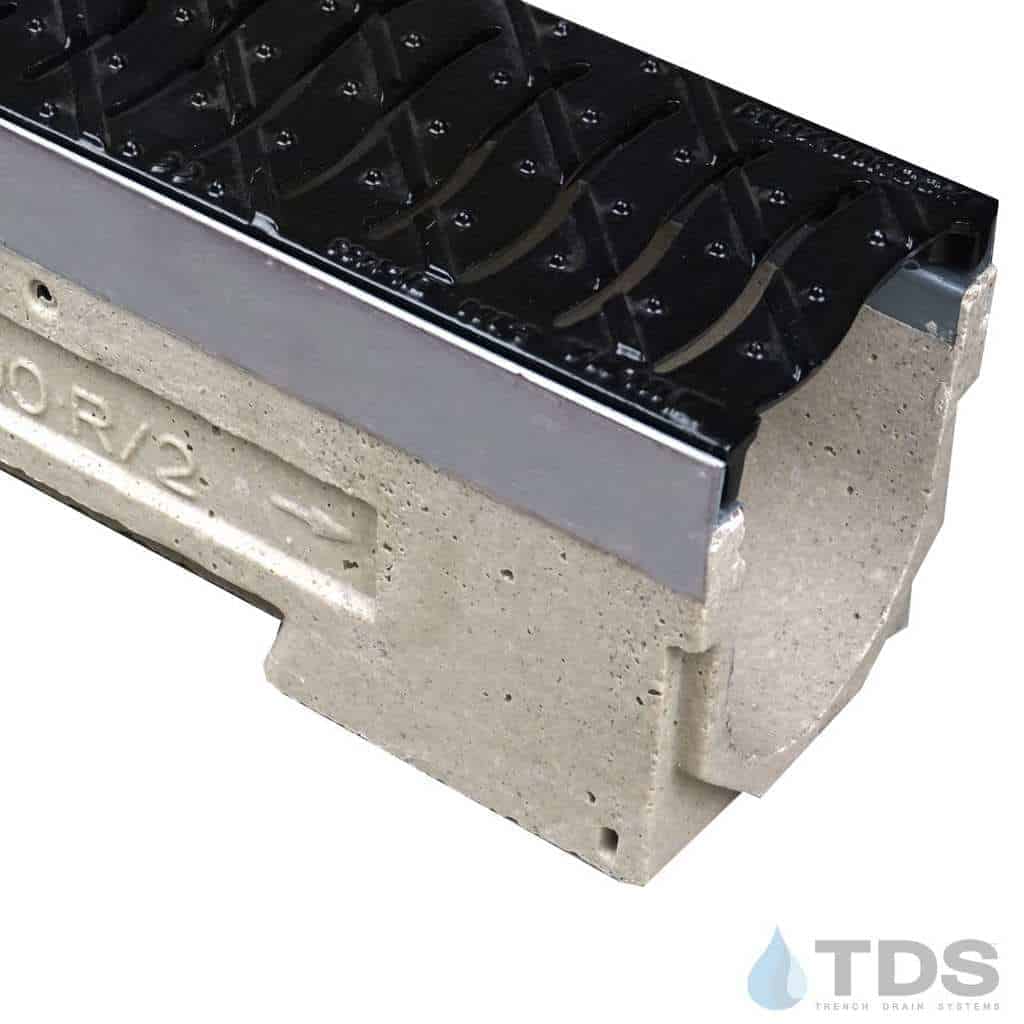

ULMA U100KX w/ Ductile Iron Heel-Proof Grate (480)



This pre-sloped polymer concrete trench drain kits uses the ULMA Type U100KX channel with integral stainless steel edging.  It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm.  Channels are 1 meter in length and have a 0.5% slope. Locking system consists of locking bar CS100 and hex head screws.  Installation hardware is included.

Ulma U100K channel schematic diagram
ULMA U100KX Channel Dimensions

Note: 2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

ULMA has a wide variety of drain gratings for their 100 mm  wide channels.  This kit includes a standard, 480 ductile iron heel proof slotted grate (ULMA Number FNHX100KCCM).

This grate is 124 mm wide and 498 mm in length.  Two grates are required for each one meter ULMA channel.  This grating has a load class C rating.

480 Ulma ductile iron heel-proof wave grate
ULMA’s heel-proof slotted ductile iron grate

Your #1 Trench Drain Supply Resource!

U1KX-480-01 U1KX-480-02 U1KX-480-03 U1KX-480-04 U1KX-480-05 U1KX-480-12

Kit Meter Length

, , , , , , , , , , , , , , , , , , , , , , , , ,




Animal and Zoo, Commercial, Driveway Drainage, Greenhouse, Industrial, Municipal, Patio, Poolside, Residential

Grate Pattern

Channel Material

Polymer Concrete

Product Type

Drainage Kit

Load Class

Load Class C
