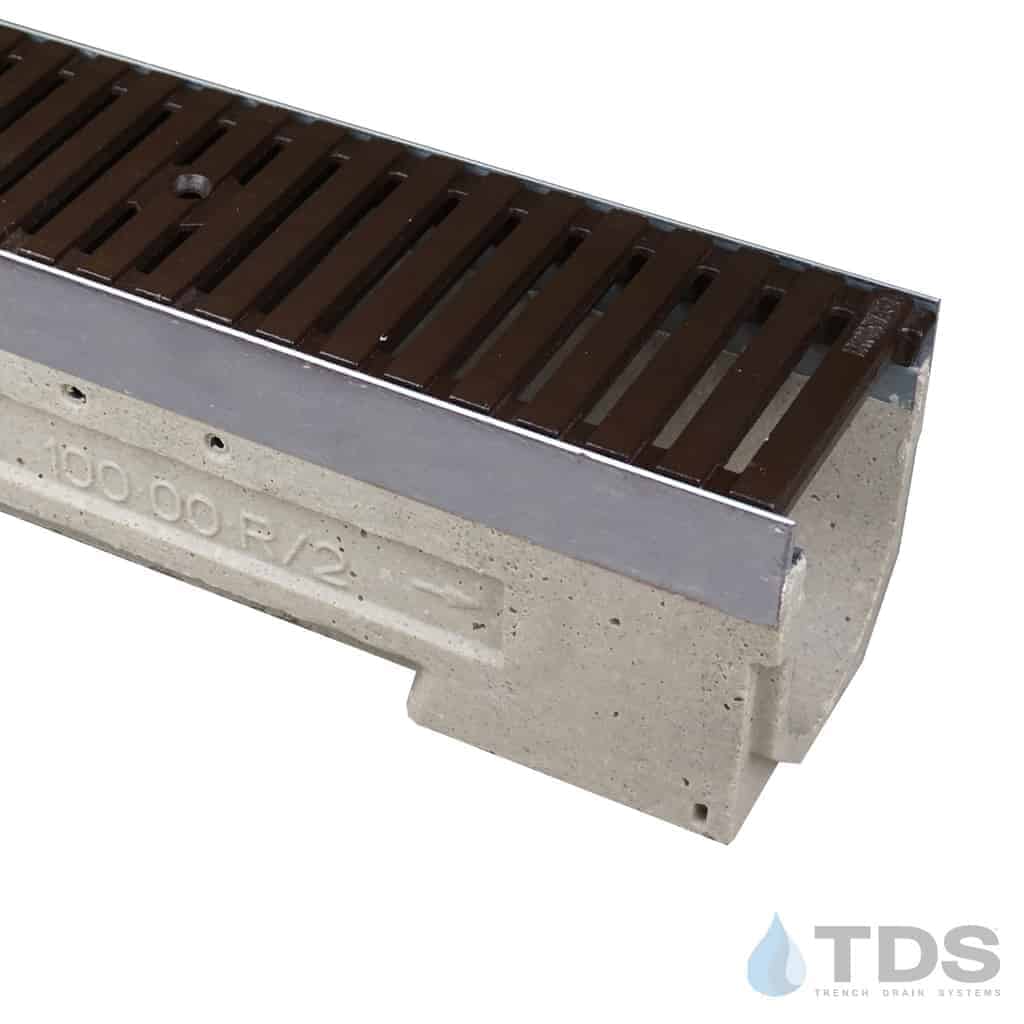

This pre-sloped polymer concrete trench drain kit uses the ULMA Type U100KX channel with integral stainless steel edging. It has an external width of 130 mm, an internal width of 100 mm, and is available in overall heights ranging between 130 mm and 280 mm. Channels are 1 meter in length and have a 0.5% slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware is included.
ULMA’s U100KX channel fits Iron Age Designs decorative cast iron trench grating measuring 122 mm x 498 mm. This kit has the Regular Joe pattern, which is available in either the raw casting or Baked on Oil Finish (BoOF).
Each Kit Includes:
- Installation chair(s)
- Locking device(s)
- End Cap (not included with half channel)
- End Outlet (not included with half channel)
