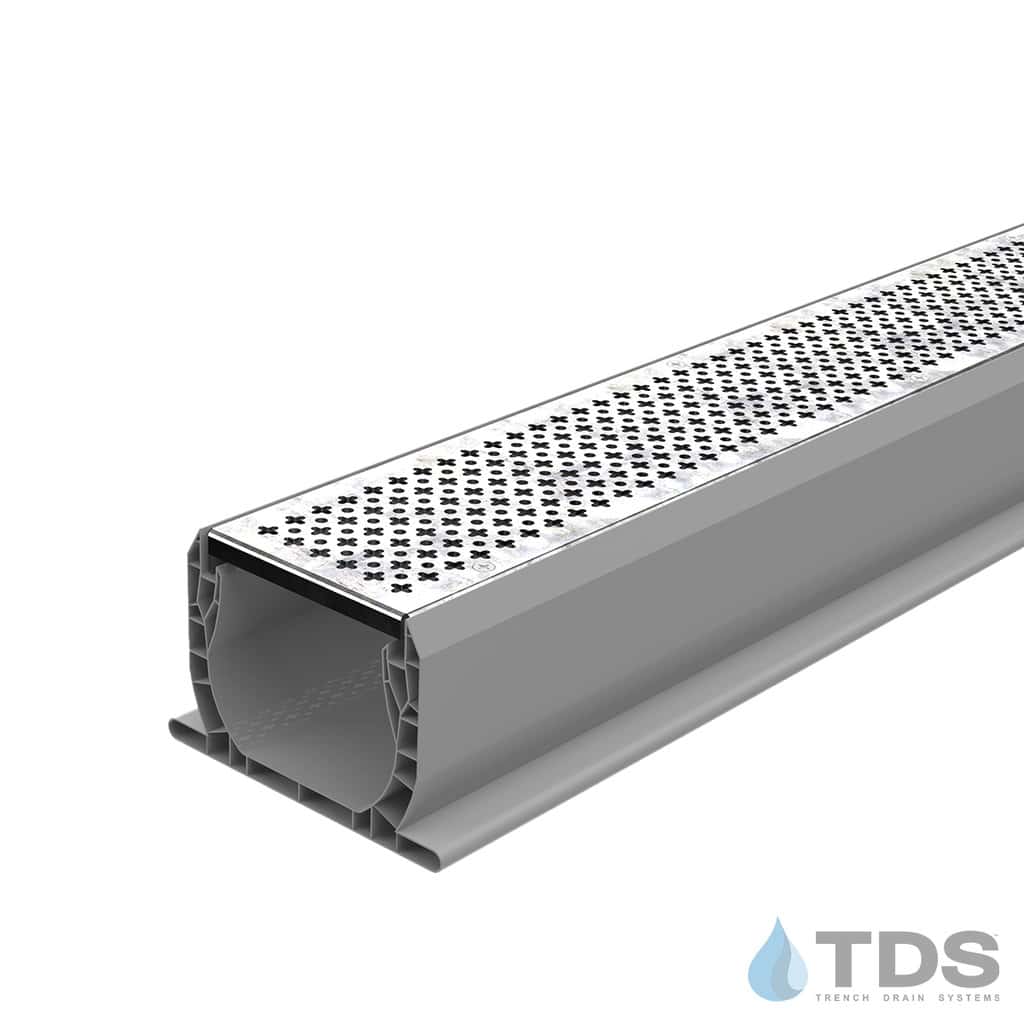

The NDS Spee-D® Channel trench drain system is a 4.75″ PVC channel drain designed for residential and light commercial applications. This drainage kit comes with a lightweight PVC neutral channel, end cap/outlet, couplers, hold-down screws, and Load Class B Cathedral galvanized steel grates. Grates are both ADA-compliant and heel-proof.
This system has a Load Class rating of A but can be rated for a B Load Class if properly installed; see the specification sheet for details.
The Spee-D® drainage system also offers bottom and end outlets to fit 3″ or 4″ S&D piping. This versatile 4″ wide trench drain offers 90° and 45° fabricated elbows, as well as cross and t-sections. (Sold Separately)
Actual Grate Dimensions: 4.09″ W x 47.94″ L
Specification Sheet for Spee-D® Channel
Spee-D® Channel Installation Guide
Each kit includes:
- Channels (in 4′ lengths)
- One End Cap
- One End Outlet (Fits 3″ S&D pipe or 4″ S&D fittings)
- Couplers (1 for each joint)
- Grates (304 Stainless or Galvanized Steel)
- Hold-Down Screws (NDS229)
