ULMA MV+200DI w/ 678 HP Ductile Iron 9X20 Slotted Grate Class E

Each kit includes:

• Channels w/ Ductile Iron Metal Edges
• Grates
• Installation Chairs
• End Cap/ End Outlet (not included on half meter option)

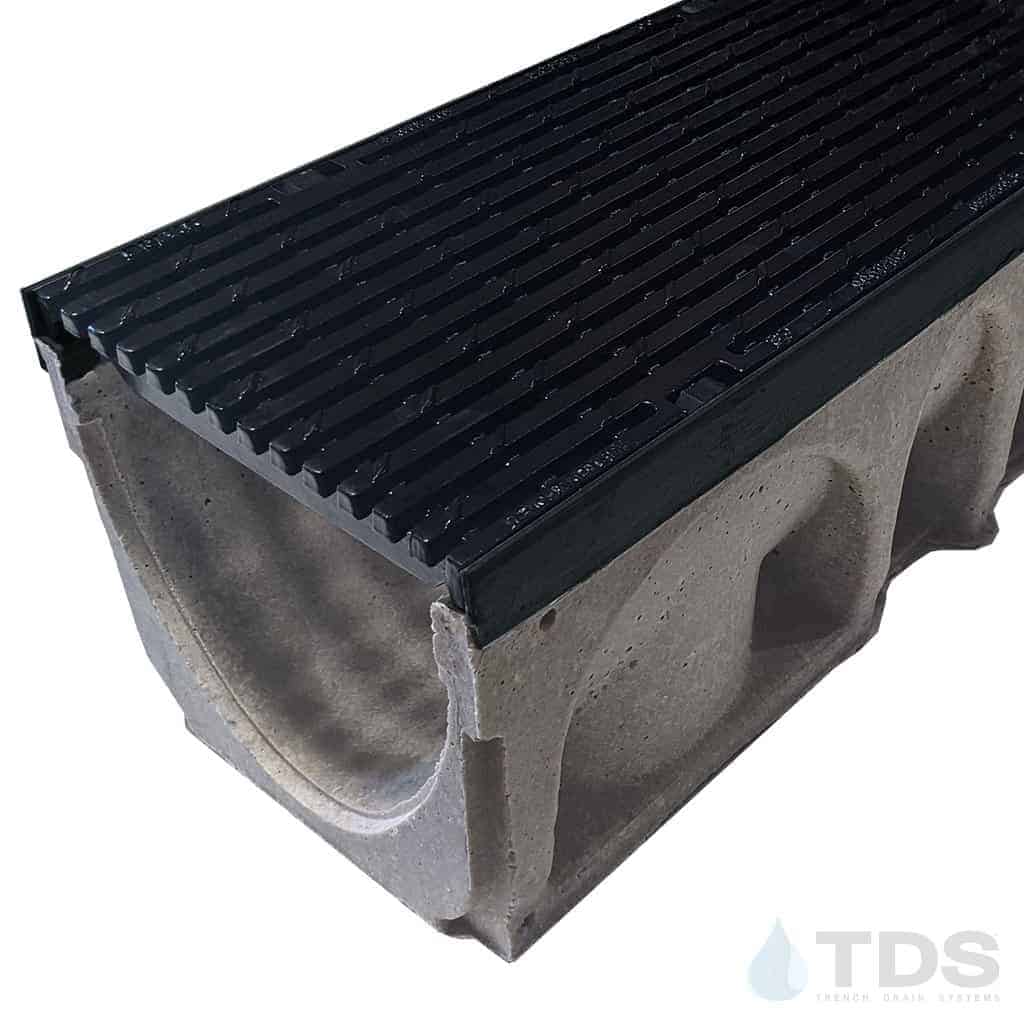

ULMA MultiV+200 linear drainage system with ductile iron edging and 678 slotted heel-proof and ADA-compliant ductile iron grate is an ideal water management system for heavy load traffic (Load Class E). This trench drain system is made with a self-cleaning V-shaped polymer concrete base designed to move water and debris away quickly.

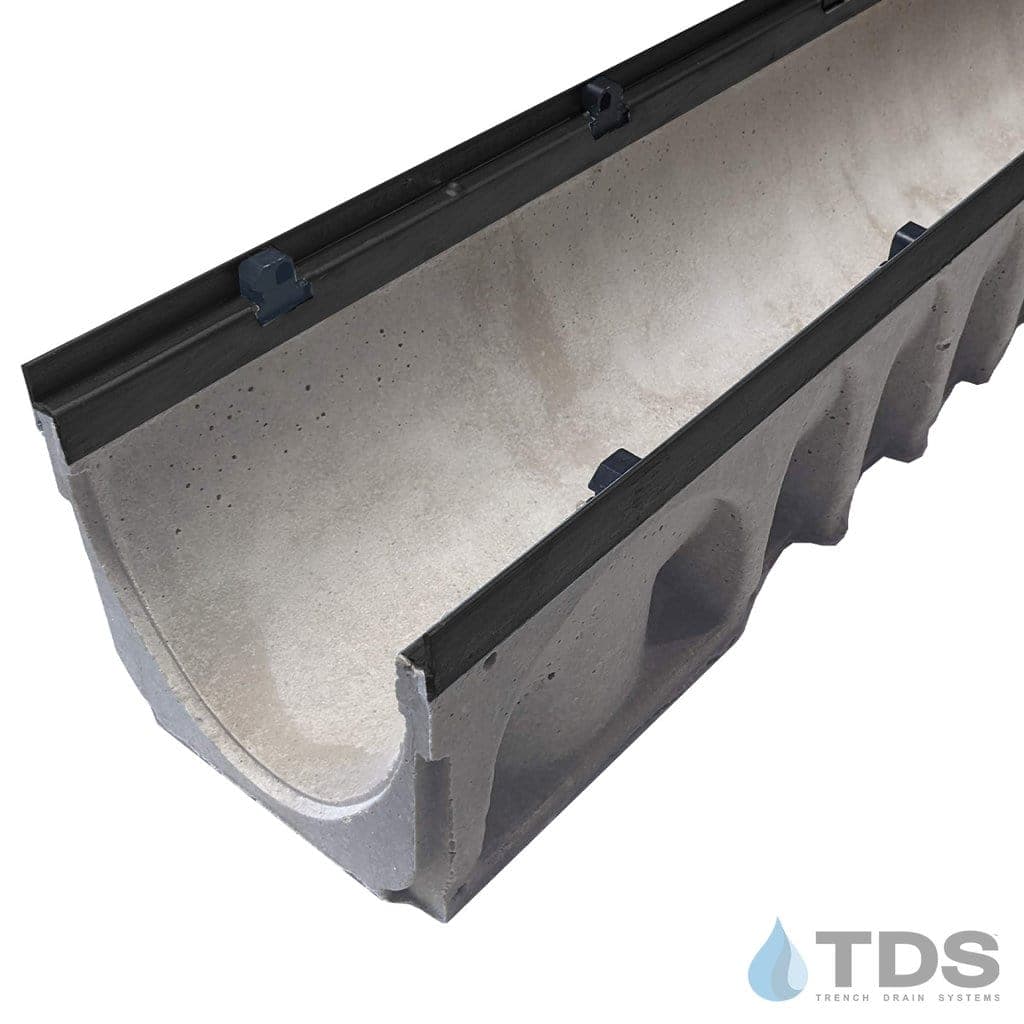

Each 1-meter channel provides a .5% slope. An external width of 9.29" (236mm), internal width of 7.87" (200mm), and variable heights make this drain channel suitable for a variety of applications including parking lots, and commercial, or pedestrian traffic areas.

Each kit includes:

• Channels with ductile iron metal edge
• Grates
• Installation Chairs
• End Cap/ End Outlet (not included on half meter option)

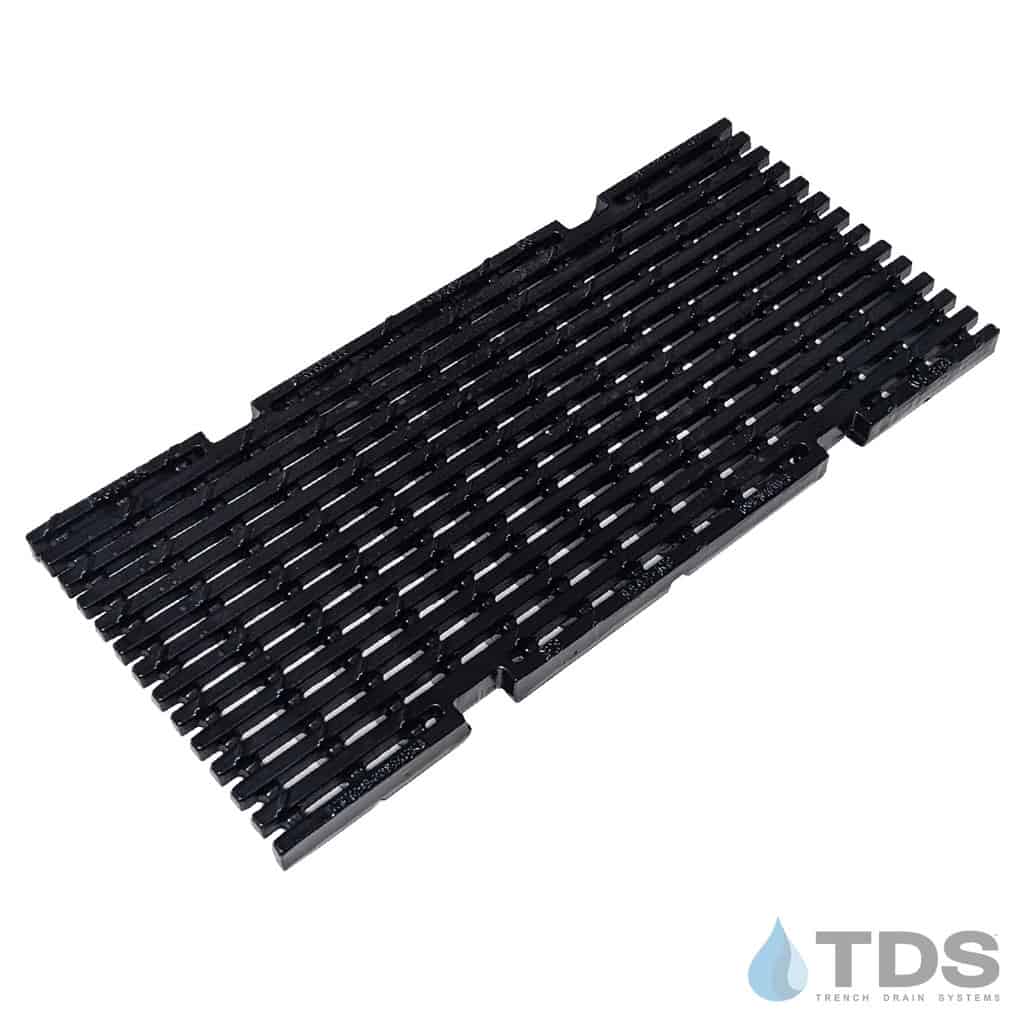

Grating

• ULMA 678 - (9" Wide)
• Ductile Iron Slotted - (Load Class D400, EN1433 standard)
• Actual Dimensions: 8.93″ [227 mm] x 19.60″ [498 mm] x .78″ [20 mm]
• Heelproof
• Water Flow Area: 920 cm²/lm
• Rapidlock® system

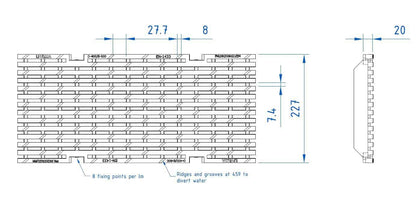

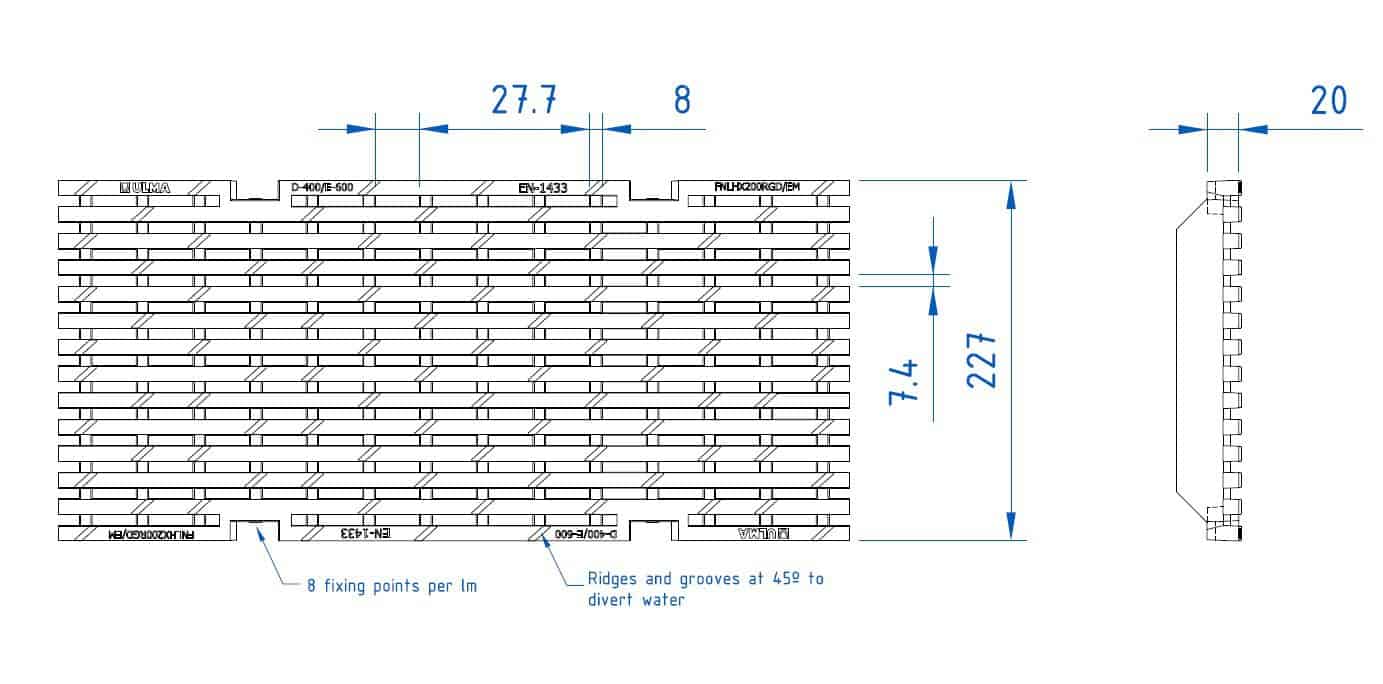

Specification Sheet for ULMA 678 / FNLHX200RGD/EM
