POLYCAST® DP0653SB 24" Catch Basin w/DG0659 Slotted Fiberglass Grate

Heavy-Duty Catch Basin Kit

Large Project? Request Quote.

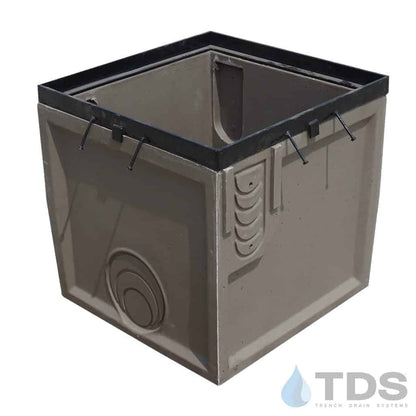

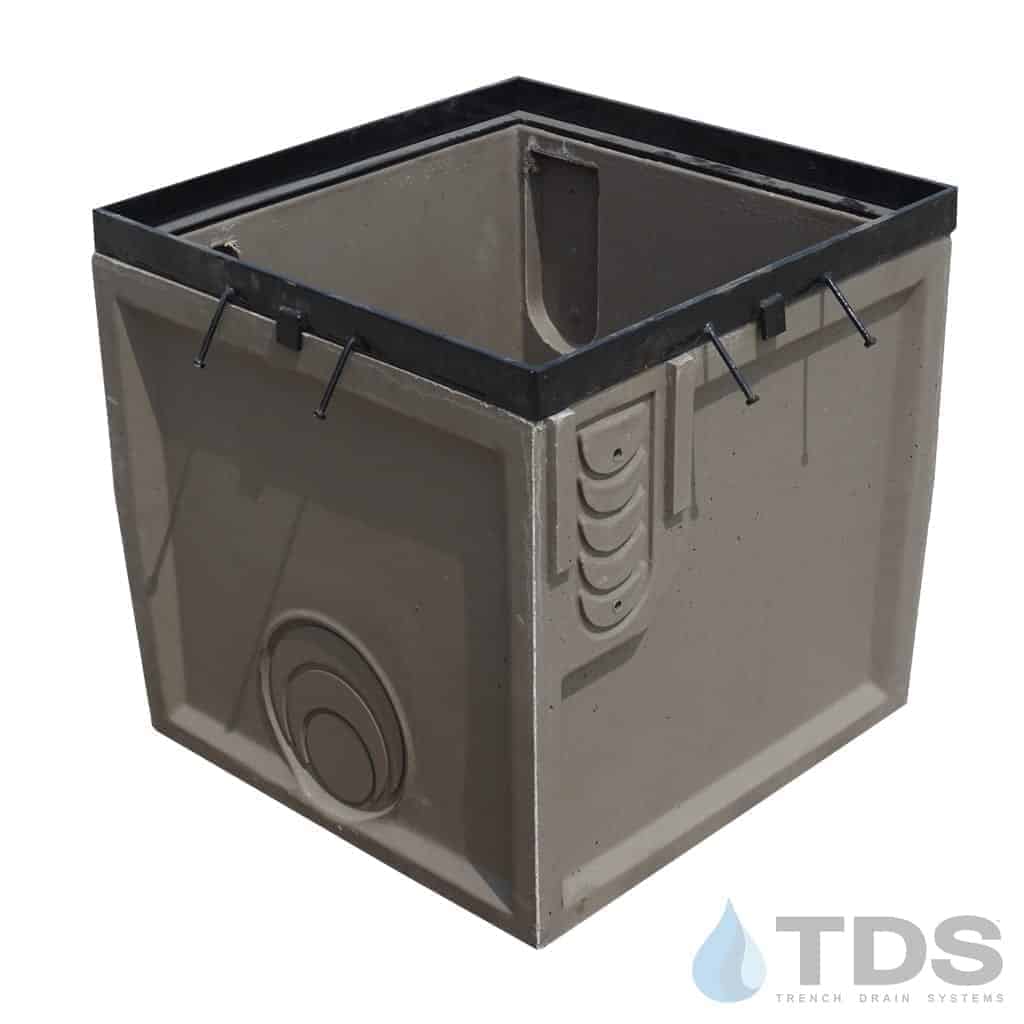

Hubbell’s POLYCAST DP0653SB 24" x 24" solid bottom catch basins are designed to be used as collection points, drain run transitions, and/or interceptors that capture solid debris and can hold up to 46 gallons of water. They are made of polymer concrete and created to attach using preformed cut-out indicators along the sides basin.

Grates are sold separately.  Basin Risers DP0653OB are available if deeper collection points are needed.

Grating:

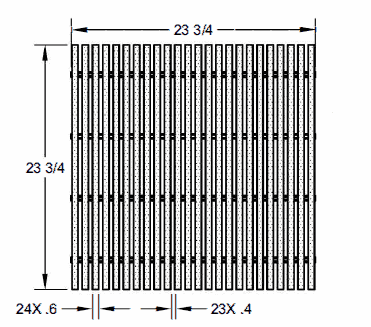

• DG0659 - Ductile Iron Slotted Grate - (Class A Load Rating)
• Meets DIN 19580 / DIN EN1433 standards
• ADA-Compliant
• Color: Gray

Specification Sheet for DG0659

Catch Basin Kit Includes:

• Grate (Ductile Iron Slotted)
• Catch Basin (Solid Bottom)

Specification Sheet for DP0653SB
