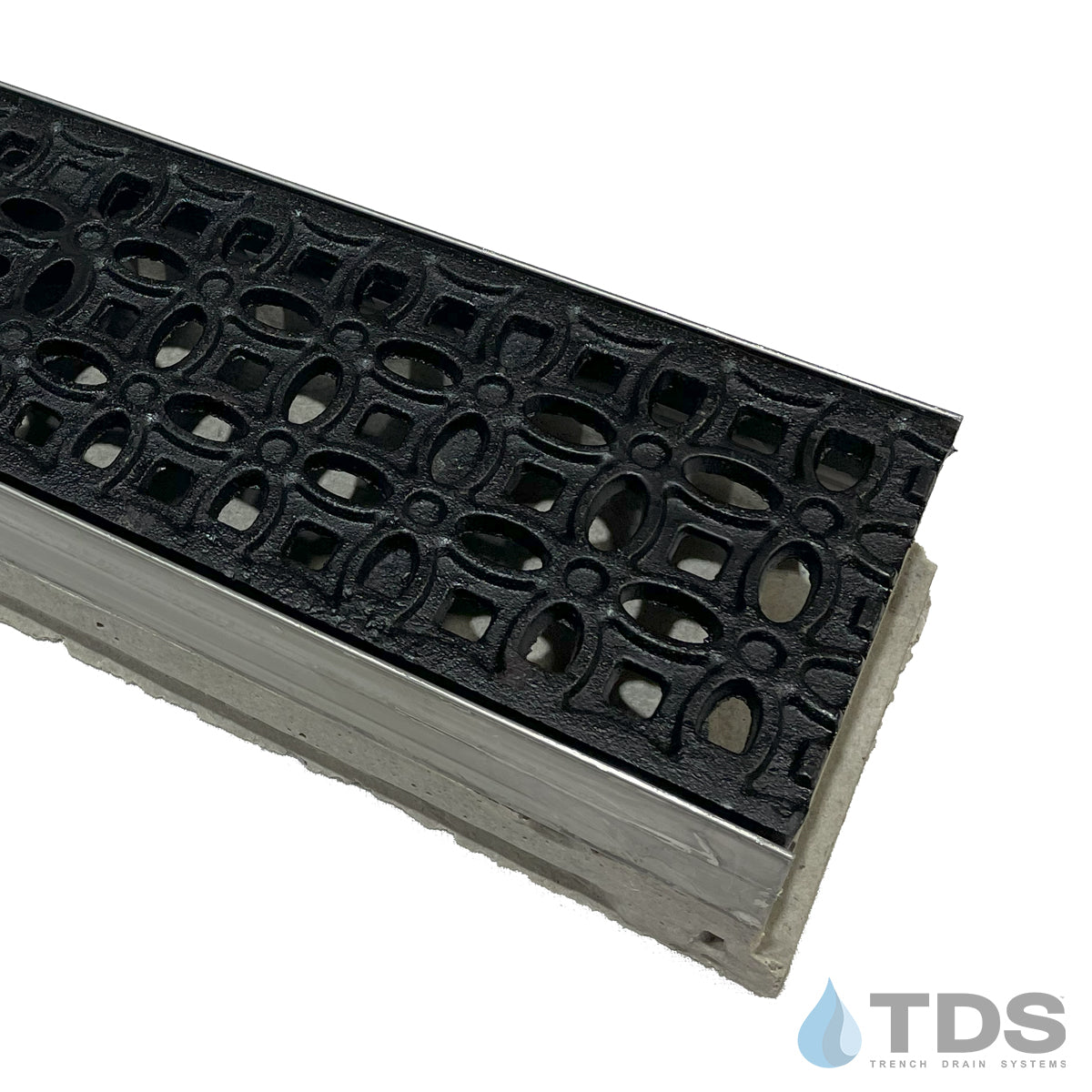

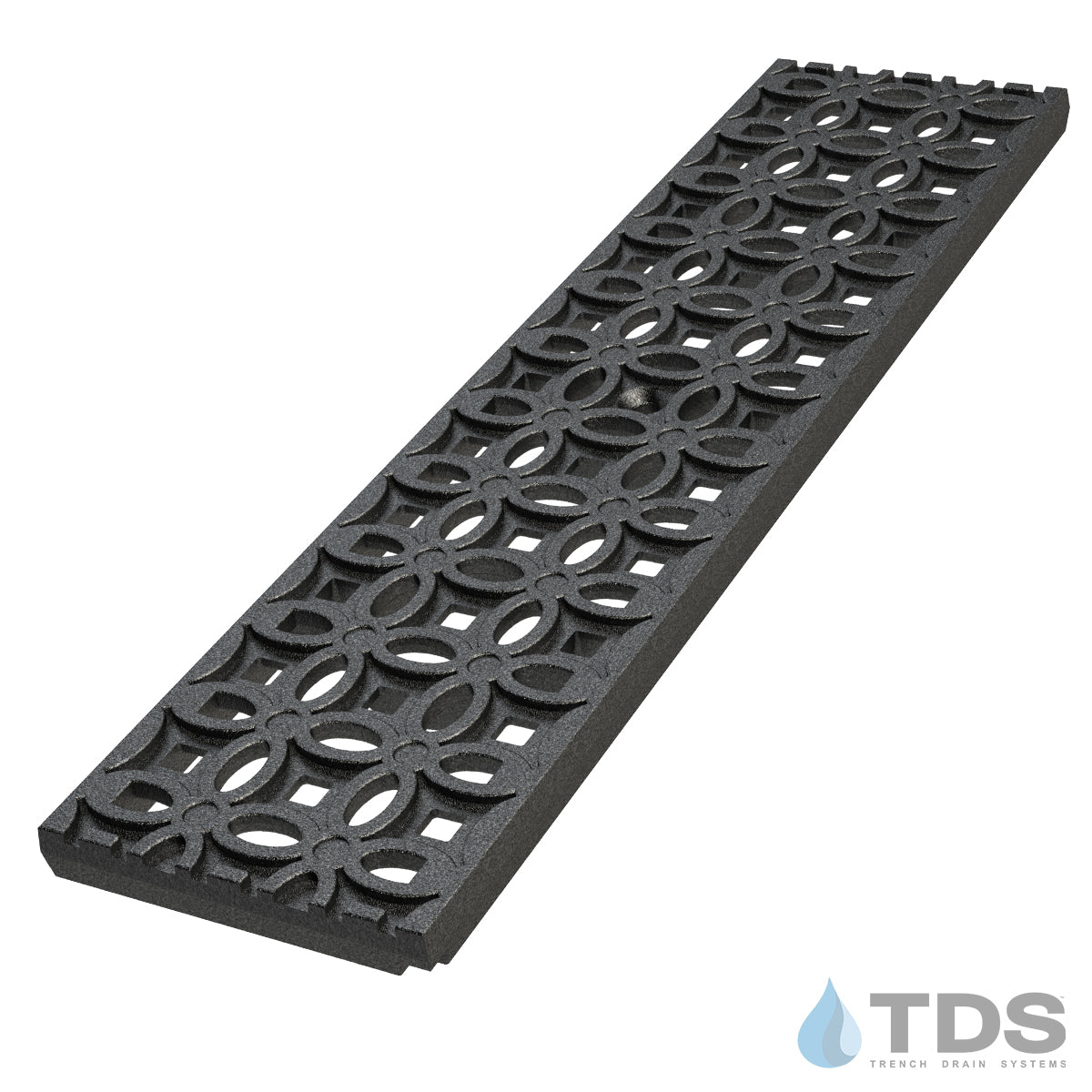

ULMA M100K shallow polymer concrete channel w/ stainless steel edge and exclusive Bronze Age™ LUNA ductile iron grating.
Installation hardware and solid end caps are included.
This shallow channel drain uses the ULMA Type M100KX channel with integral stainless steel edging. Neutral channels come in 1-meter lengths with an external width of 130mm (5.12"), an internal width of 100mm (3.94"), and an overall height of 80mm (3.15").
The locking system consists of locking bars and hold-down screws. Installation hardware and solid end caps are included. A pre-formed 4" diameter knock-out (Drill-out) is located at the bottom of the channel for outlet pipe connection. End outlet is also an option by leaving off the solid end caps.
