The TDS shallow vinyl ester catch basin is an important part of a pre-sloped drainage system. These vinyl ester polymer shallow catch basins are made with chemically inert materials and are resistant to high temperatures. This series is perfect for breweries and other industries that experience extreme conditions.
The TV0750S can be used as an individual catch basin with either a ductile iron or HDPE frame, or in tandem with a vinyl ester POLYCAST® trench drain system.
This neutral short catch basin accepts the same grating options, edging, and frames as the POLYCAST® 600/700 drain systems.
Cut-outs for side, bottom, and end outlets are located on the catch basin for ease of installation. A core drill is available before shipment (at an additional cost).
Catch Basin with Frame Actual Dimensions: 6 1/4″W x 24″L x 13 3/16″H
DG0657R Grate Specification Sheet
DA0700AA Frame Specification Sheet
Grating:

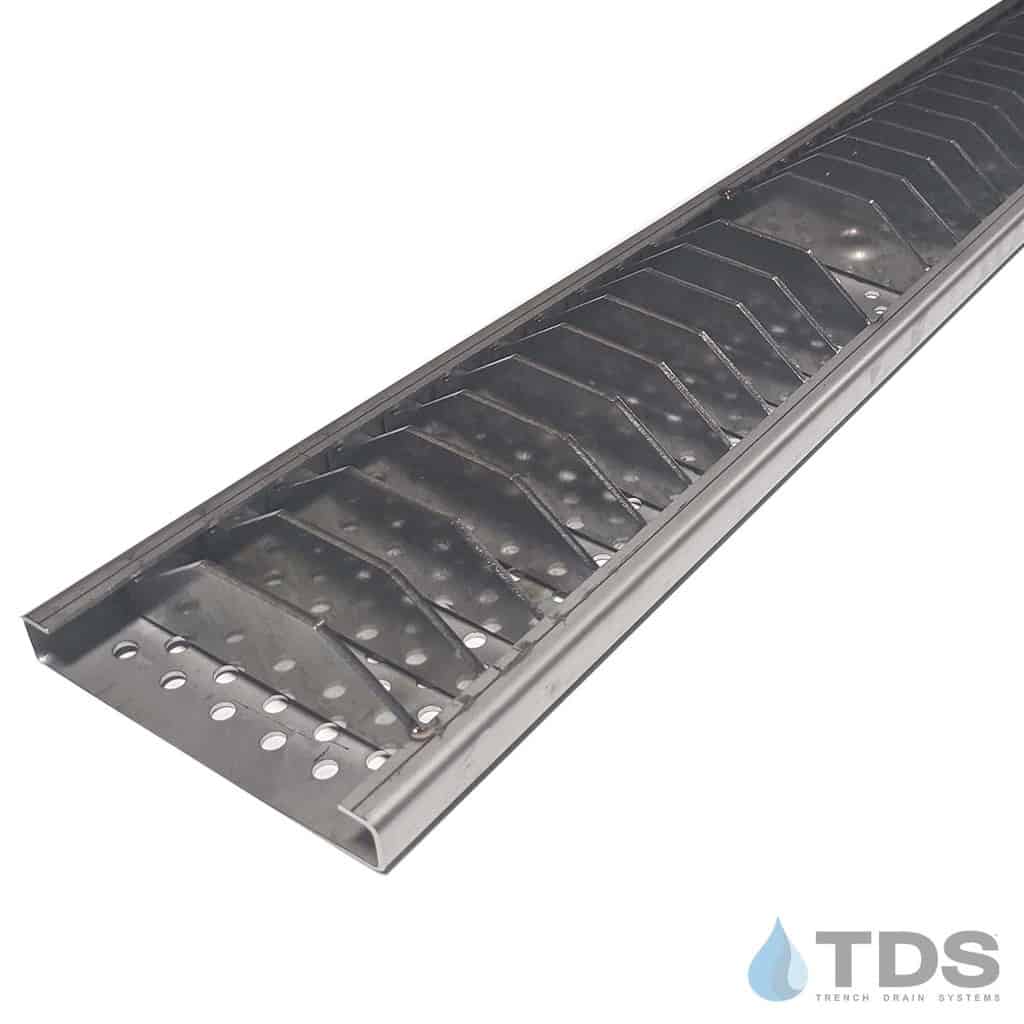

- DG0657R – Stainless Reinforced Perforated Grate – (Class C Load Rating)
- Material: 316L Stainless Steel
- Color: Silver
Catch Basin Kit Includes:
- Grate (Stainless Reinforced Perforated Grate)
- Locking Device
- Catch Basin
- Ductile Iron Frame (Raises system to a Load Class D)
