POLYCAST® DP0650 Inline Catch Basin w/DG0646RH Reinforced Perforated Galvanized Grate & Edge

SKU: PCK6-CB06-DG0646R-GE

Deep Catch Basin

6.25″W x 24″L x 24″H

Large project? Request a Quote

$502.88

The POLYCAST® Catch Basin is an important part of a pre-sloped drainage system. This catch basin is manufactured with a high-strength, corrosion-resistant polymer concrete material. It is designed to be used as a collection point and drain run transitions to collect solid debris. The DP0650 can be used as an individual catch basin, or with the POLYCAST® 6″ wide trench drain system. It can also be used beneath the TDS-POLYCAST® TP0650S short catch basin for a deeper installation with a larger capacity.

The catch basin accepts the same grate options, edging, and frames as the POLYCAST® 600 trench drains for an unnoticeable transition between the channels and catch basin. Cut-outs for side, bottom, and end outlets are located on the catch basin for easy installation. A core drill is available before shipment (at an additional cost).

Actual Basin Dimensions: 6-1/4″W x 24″L x 24″H

The following POLYCAST® channels correspond with the catch basin: 600N, 605, 610, 615, 620, 625, and their corresponding halves and neutrals.

Specification Sheet for DG0646RH

Catch Basin Kit Includes:

  • Catch Basin
  • Grate

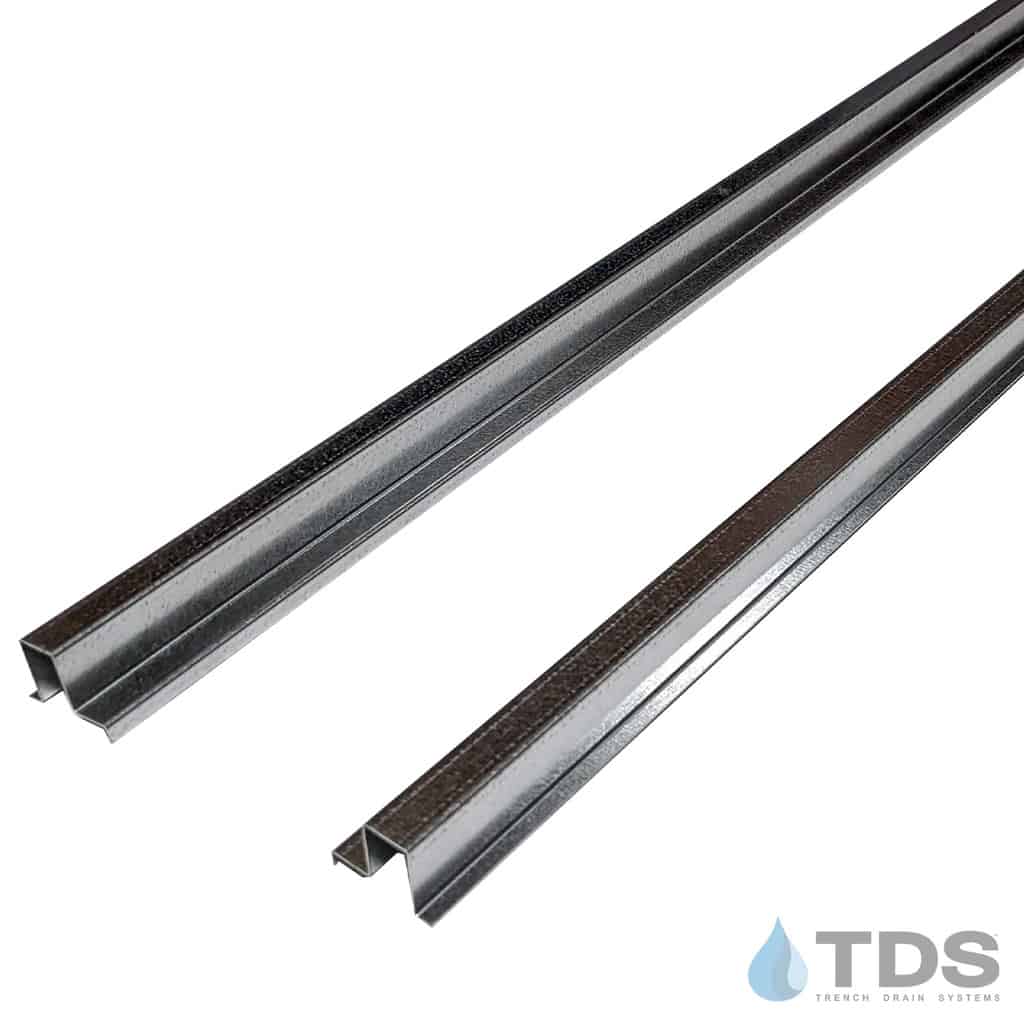

  • Galvanized Edge
  • Locking Device

Want to learn more about this system? Click Here for more information.

Your #1 Trench Drain Supply Resource!

Manufacturer

POLYCAST, TDS

Product Type

Catch Basin

System

POLYCAST 600

Channel Material

Polymer Concrete

Application

Animal and Zoo, Commercial, Greenhouse, Municipal, Patio, Residential, Agriculture

Load Class

Load Class C

Grate Material

Grate Load Class

Grate Pattern

Frame/Edging

Galvanized Edging

CSI Code 22 00 00, 22 13 29.33, 22 14 00, 22 14 26, 22 14 26.19, 22 14 29.19, 33 30 00, 33 40 00, 33 44 00, 33 44 13, 33 44 13.13, 33 44 16, 33 46 13
