POLYCAST 600 Series Kit with DG0647R Reinforced Slotted Stainless Grate and Edging
$709.54 – $11,546.43
Each Kit Includes:

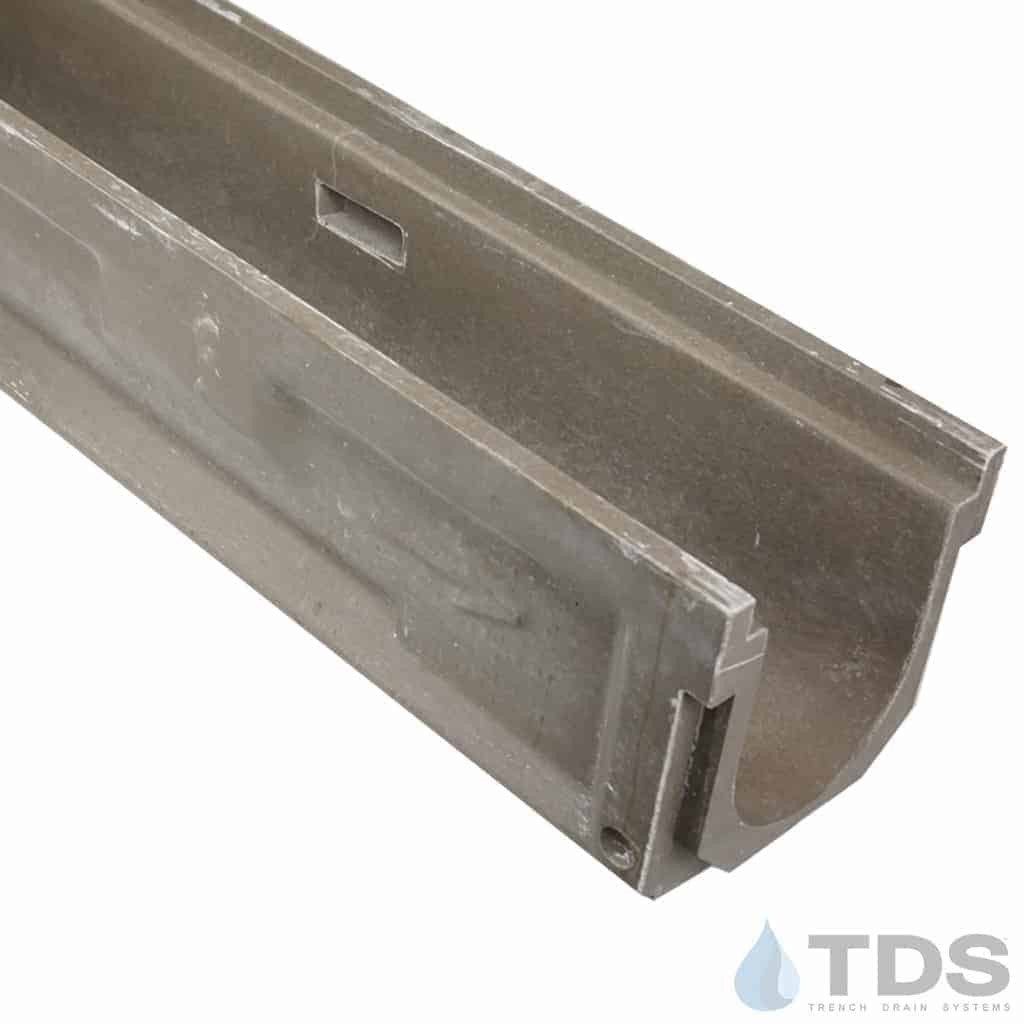

48″ POLYCAST channel(s)
48″ Stainless Steel Edging 1/channel
48″ Stainless Steel Slotted grate 1/channel
Grate Hold-down devices 2/grate
Installation Chairs
End Outlet (fits 4″ S&D pipe)
End Cap
POLYCAST 600 Series is a polymer concrete channel that has a built-in .65 percent slope that allows the system to achieve flow rates of 470 GPM. The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.
Grating:
- Stainless Steel slotted grates – Class C Load Rating
- Open Surface Area: 20%
- Material: Stainless Steel
Each Kit Includes:
- 48″ POLYCAST 600 pre-sloped channel (1 for each 4′ of kit ordered)
- 48″ Stainless Steel Edging (1pr per channel)
- 48″ Stainless Steel Slotted grate (1 per channel)
- Grate Hold-down devices (2 per grate)
- Installation Chairs
- End Outlet (fits 4″ S&D pipe)
- End Cap
- Installation instructions
Also available in Vinyl Ester Channels, request your quote now.
Want to learn more about this system? Click Here for more information.
Layout Info:
Please review the inlet/outlet depths shown for each system length. If you have certain channels, a channel depth requirement, or a large project, we invite you to request a quote.
| Kit Length | 4 Feet, 8 Feet, 12 Feet, 16 Feet, 20 Feet, 24 Feet, 28 Feet, 32 Feet, 36 Feet, 40 Feet, 76 Feet |
|---|---|
| System | POLYCAST 600 |
| Manufacturer | POLYCAST |
| Load Class | Load Class C |
| Product Type | Drainage Kit |
| Grate Width | 6 inch |
| Application | Animal & Zoo, Chemical & Hygiene, Commercial, Municipal, Residential |
| Grate Pattern | |
| Channel Material | Polymer Concrete |
| Grate Load Class | |
| Grate Material |
