POLYCAST® 600 Series Kit with DG0646R Reinforced Perforated Galvanized Grate


Each Kit Includes:

48″ POLYCAST channel(s)
48″ Galvanized perforated reinforced grate 1/channel
Grate Hold-down devices 2/grate
Installation Chairs
End Outlet (fits 4″ S&D pipe)
End Cap


POLYCAST® 600 Series is a polymer concrete channel that has a built-in 0.65 percent slope that allows the system to achieve flow rates of 470 GPM.  The installation chairs tighten the joints between channels while aligning and leveling the drainage run. Each installation chair is secured to the ground (using your own rebar), ensuring that the channels will not float during the concrete pour.

Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.

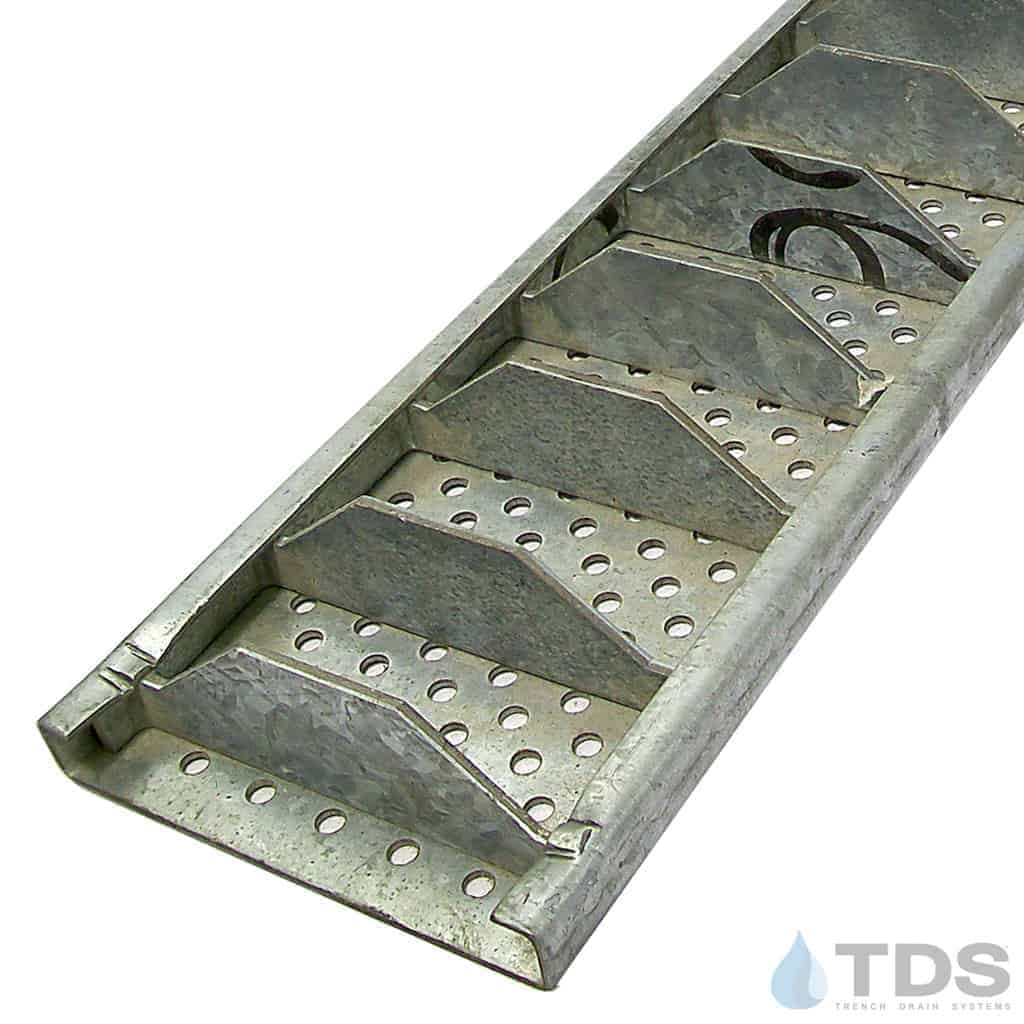

Grating:G0646R Reinforced Galvanized Perforated Grate


Each Kit Includes:

  • 48″ POLYCAST® 600 pre-sloped channel (1 for each 4′ of kit ordered)
  • 48″ Galvanized reinforced grate (1 per channel)
  • Grate Hold-down devices (2 per grate)
  • Installation Chairs
  • End Outlet (fits 4″ S&D pipe)
  • End Cap
  • Installation instructions

Layout Info:

Please review the inlet/outlet depths shown for each system length. POLYCAST-600-Channel-Depths-2

POLYCAST 600 Layout

Feel free to Request a Quote for:

  • Specific channels or channel depth requirements
  • Vinyl ester channels for extreme temperatures and chemical resistance
  • Large projects (over 100′)

Want to learn more about this system? Click Here for more information.

NOTE: For proper installation, grates must be in the channel during installation.

2 foot kits are intended to be an extension to kits and only include one install chair and no end caps/outlets. Other accessories are to be purchased separately if it is intended to be a stand-alone kit.

Kit Length

, , , , , , , , , , , , , , , , , , , , , , , , ,



Load Class

Load Class C

Product Type

Drainage Kit

Grate Width

6 inch


Animal and Zoo, Commercial, Driveway Drainage, Greenhouse, Municipal, Patio, Residential

Grate Pattern

Channel Material

Polymer Concrete

Grate Material



CSI Code 22 00 00, 22 14 00, 22 14 26, 22 14 26.19, 33 30 00, 33 40 00, 33 44 00, 33 44 13, 33 44 16, 33 46 13
