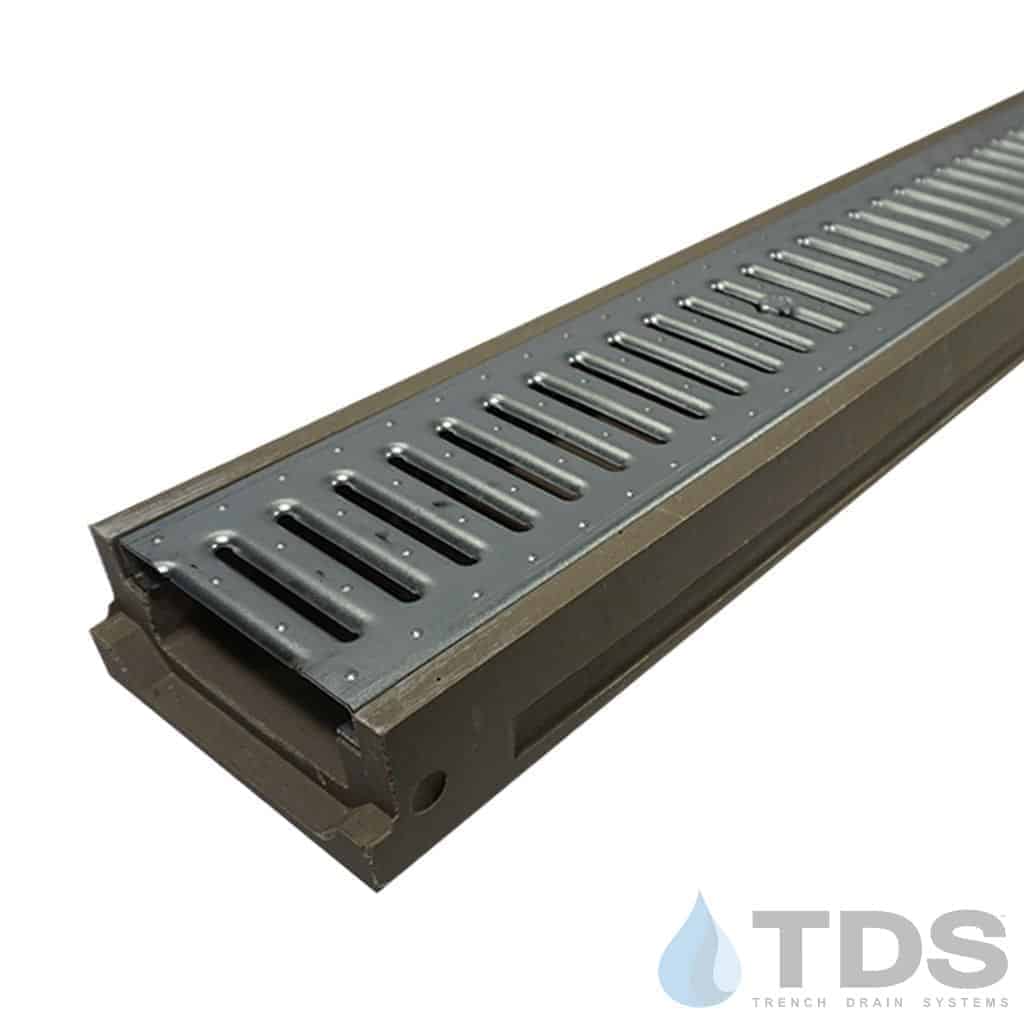

POLYCAST 500 Series Kit with DG0640 Slotted Galvanized Grate | Load Class B
$353.53 – $6,438.85
Each Kit Includes:
48″ POLYCAST channel(s)
48″ Galvanized Steel Reinforced Slotted Grates
Grate Hold-down devices 2/grate
Installation Chairs
End Cap
End Outlet
POLYCAST 500 shallow trench drain is 1.75” in depth, 6.25″ wide and comes in 48” lengths . A bottom outlet that will need to be core drilled for pipe connection. Installation chairs are included and provide a tight joint between channels while aligning and leveling the drainage run.
Typical Applications
- Decks and Patios
- Grocery Stores
- Hotels
- Swimming Pools
Grating:
- Galvanized Grate – (Class B Load Rating)
- Pattern: Slotted
- Open Surface Area: 17%
- Heel Proof
- ADA Compliant
Specification Sheet for DG0640
Each Kit Includes:
48″ POLYCAST channel(s)
48″ Galvanized Steel Reinforced Slotted Grates
Grate Hold-down devices 2/grate
Installation Chairs
End Cap
End Outlet
Your #1 Trench Drain Supply Resource!
| Kit Length | 4 Feet, 8 Feet, 12 Feet, 16 Feet, 20 Feet, 24 Feet, 28 Feet, 32 Feet, 36 Feet, 40 Feet, 44 Feet, 48 Feet, 52 Feet, 56 Feet, 60 Feet, 64 Feet, 68 Feet, 72 Feet, 76 Feet, 80 Feet, 84 Feet, 88 Feet, 92 Feet, 96 Feet, 100 Feet |
|---|---|
| Manufacturer | POLYCAST |
| Grate Width | 6 inch |
| Application | Animal & Zoo, Commercial, Driveway Drainage, Greenhouse, Industrial, Municipal, Patio, Residential, Transportation |
| Grate Pattern | |
| System | POLYCAST 500 |
| Load Class | Load Class A |
| Product Type | Drainage Kit |
| Channel Material | Polymer Concrete |
